Component Involved:
| 1 | 5V Regulator |
| 2 | 3.3v convert 1.8v Regulator |
| 3 | IC Chip |
How to check regulator:
Attach multi-meter testing pen to both end of regulator, measure 5v while main power supply to MCU board.
Replace it if the values lower than 5v.
 |
 |

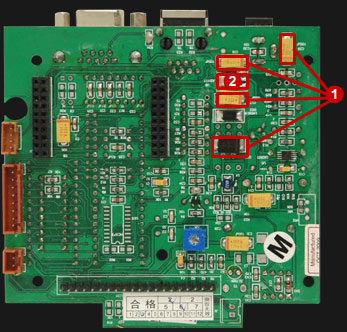

| Front View | Rear View |
 |
To check 3.3v convert 1.8v regulator: Attach multi-meter’s testing pen to 2nd & 3rd pin (right side) as shown in the picture, supply main power to the MCU board and measure 3.3v. Replace new regulator if the value less than 3.3v. |
 |
If 3.3v convert 1.8v Regulator works well, replace the IC Chip (3) at priority. |
