| TimeTec Cloud Technology Whitepaper |
|
Technology Stack
• C#
• Windows Server 2008
• PHP
• Amazon Web Services (AWS)
• Route 53
• Elastic Load Balancing (ELB)
• Elastic Compute Cloud (EC2)
• Amazon RDS
• Amazon S3
• Elasticache
• CloudWatch |
Abbreviations
• EC2 Elastic Compute Cloud
• AWS Amazon Web Services
• S3 Simple Storage Service
• Amazon Web Services (AWS)
• MFA Multi Factor
Authentication
• EBS Elastic Block Storage
• IAM Identity and Access Management
• SQS Simple Queue Service
• AZ Availability zones
• SNS Simple Notification
Service
• VPN Virtual Private Network
• ELB Elastic Load Balancer
• SPOF Single Point Of Fail |
Introduction
TimeTec Cloud Service consists
of the following 3 main cores:
• System Study and Architecture
• Cloud Engineering
• Infrastructure Design |
|
|
| |
| Overview of TimeTec Cloud |
TimeTec Cloud is a powerful web-based solution for automated time attendance for various kinds of businesses. Built with Microsoft.NET framework and MySQL Relational Database Management, TimeTec is basically an advanced web-based version of the FingerTec TCMS V2 and this application has vast potential for use in SMEs or even large multinational companies (MNC).
TimeTec centralizes all FingerTec terminals to the server where you can control, manage and download the transaction logs all from one place. On top of that, we also have the TimeTec Mobile application for iPhone/ iPad/ iPod Touch and Android device users which allows the user to check attendance records and to clock-in their attendance from a GPStagged location on-the-go, as long as an Internet connection is available. FingerTec is an attendance management solutions provider.
FingerTec has decided to leverage AWS cloud services to create a multi-tenant version of TimeTec system to reduce operational cost and to eff ectively utilize the infrastructure. In addition, FingerTec would like to utilize the cloud to ensure consistent performance; automatic scaling of the infrastructure based on load and high availability of its TimeTec services.
The front end web application is accessed via another PHP web front end which takes care of authentication and acts as the product information portal for TimeTec. http://www.timeteccloud.com/ |
| |
| System Study And Architecture |
An in-depth technical study of TimeTec Cloud application as well as the Amazon Web Services Platform has been performed which covered all the major layers of the application such as the front-end web layer, database, fi le storage, external integration points and user/system generated fi les. FingerTec has designed the infrastructure architecture based on the input gathered during the system study.
The recommended architecture will follow best practices for setting up scalable and highly available infrastructure on AWS (Examples: Loose coupling, Design for failure).
Some objectives for this exercise are: |
 |
High Availability using multiple AWS Availability Zones within a region |
|
Failover of Amazon EC2 instances (Web/App) using Amazon Auto Scaling |
|
Scalability of Amazon EC2 instances (Web/App) using Amazon Auto Scaling |
|
Load Balancing using Amazon Elastic Load Balancing |
|
Amazon RDS (MySQL) Database in High Availability Mode with X Read Replica Slave |
|
Monitoring of infrastructure using Amazon Cloud Watch metrics |
|
Infrastructure related alerts via Email using Amazon SNS |
|
Backup confi guration of Amazon RDS database and Web/App layer |
|
Amazon S3 and Amazon EBS for Storage |
|
|
|
|
| |
| Based on the study, TimeTec Cloud will contain 2 types of architecture setup as follows. |

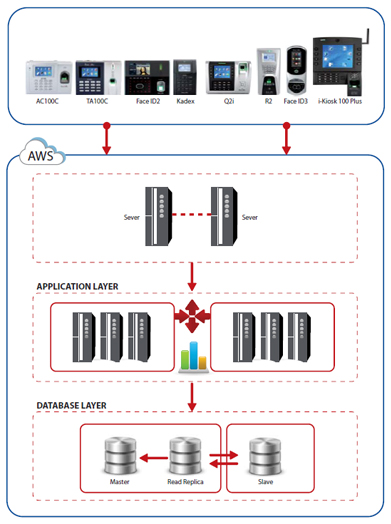

| Device To Cloud |
 |
|
|
|

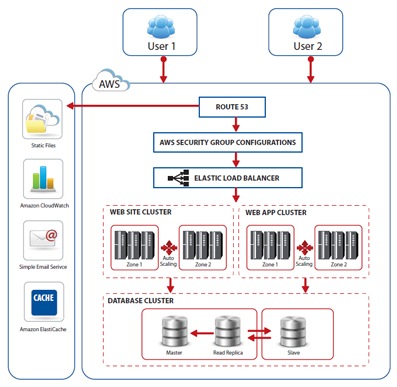

| Web Frontend |
 |
|
|
|
|
| |
| The architecture involves the following AWS Infrastructure components like: |
 |
|
Amazon EC2
Web , Application and Database servers will be hosted as Amazon EC2 server instances. |
|
 |
|
Amazon EBS
Elastic Block storage will be used for persistent fi le storage. EBS will be
attached/detached with relevant server instances. |
| |
|
|
|
|
|
|
 |
|
Amazon S3
AMI’s, Logs, Snapshots, Backups and static assets can be maintained in
Amazon S3. |
|
 |
|
Amazon Elastic IP
Elastic IP is a public IP that will be attached with relevant EC2 instances. |
| |
|
|
|
|
|
|
 |
|
AWS Security groups & Firewall
Security groups will be confi gured in Amazon fi rewall to allow port/IP
range access to/from internet. |
|
 |
|
Deployment Automation
Automated Deployment tools / scripts will be confi gured for application
and system patches. |
| |
|
|
|
|
|
|
 |
|
Amazon Regions/AZ
Web , Application servers ,Database and Load Balancers will be setup on
Multiple Availability zones inside an Amazon Region. |
|
 |
|
Amazon CloudWatch
Components of Amazon Web Services like EC2, EBS etc. will be monitored
using AWS CloudWatch. |
| |
|
|
|
|
|
|
 |
|
Amazon Elastic Load balancers
Software Load balancers HAProxy/Nginx/Amazon ELB will be used for
load balancing. |
|
 |
|
Amazon SNS
Notifi cations, Alerts triggered from CloudWatch will be published to the
System administrators using SNS. |
| |
|
|
|
|
|
|
 |
|
Amazon Auto Scaling
Amazon Auto Scaling and Custom Scaling Scripts will be used to enable
Auto Scaling of the Web and Application Servers. |
|
 |
|
IAM
Identity Access Management enables you to securely control access to
AWS services and resources for your users. |
|
|
|
AWS Advantage
• Elasticity:
New EC2 instances can be automatically added during Peak loads and reduced down during valleys
• High Availability:
Web, Application and Database instances can be run on Multiple Availability Zones inside a Region for High Availability
• Fault Tolerance:
Inherently Fault tolerant building blocks like S3, EBS, CloudWatch, SQS, SNS, SES can be used for Storage, Monitoring and Messaging
• Security:
Amazon Security groups,
IAM policies, Secure Access through Keys can be leveraged for security
• Flexibility:
Multiple Instances Types/Capacities,
Full permissions and Mix Match option |
|
|
| |
| Cloud Engineering |
TimeTec Cloud involves a great amount of coding. Cloud Engineering is a process to get our internal cloud developers for implementing cloud related portions of the architecture. Our cloud developers are well versed with the AWS cloud services API and involved in the development of scalable/highly available architecture which will be implemented in TimeTec Cloud.
During the Cloud Engineering stage, our cloud developers will develop an integration layer for the front end application to communicate with the backend process. It is to automate the whole TimeTec Cloud into fully Do-It-Yourself concept from the moment you start your purchase until you start using the TimeTec Cloud service.
The overall fl ow the application data is represented below:- |
| |
| From Device to Database |
 |
| |

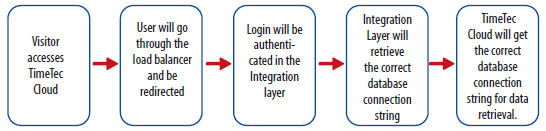

| Web Frontend |
 |
| |
With multi Tenancy in place, the application software can be scaled based on load and performance needs, thereby reducing the overall operational cost of the entire infrastructure.
A simple comparison table between Single/Multi Tenancy is given below:- |
|
| METRIC |
SINGLE TENANT |
MULTI TENANCY |
| Infrastructure |
Fixed. Provisioned during
the initial setup and requires constant updates when new devices are added.
Device -> Application |
Flexible. Provisioned partially during initial setup and the rest is auto scaled.
Device -> Bridge -> Application
Tier |
| Scaling |
No Scaling |
Auto Scaled based on load |
| Cost |
Fixed and High |
Variable and Low |
| Utilization |
Low
Since the device is mapped to the application, if the customer is on a lower plan, he might not be utilizing the servers fully. |
High
Since any customer can use any application tier server, the utilization is maximum keeping the overall cost low. |
|
|
|
AWS Advantage
• Elasticity:
New EC2 instances can be automatically added during Peak loads and reduced down during valleys
• High Availability:
Web, Application and Database instances can be run on Multiple Availability Zones inside a Region for High Availability
• Fault Tolerance:
Inherently Fault tolerant building blocks like S3, EBS, CloudWatch, SQS, SNS, SES can be used for Storage, Monitoring and Messaging
• Security:
Amazon Security groups,
IAM policies, Secure Access through Keys can be leveraged for security
• Flexibility:
Multiple Instances Types/Capacities,
Full permissions and Mix Match option |
|
|
| |
| Infrastructure Design |
FingerTec will set up infrastructure in line with the architecture design illustrated in the earlier section.
The approximate Scope of Work is presented below: |
|
| Capacity and EC2 instance provisioning: |
• Provision the required infrastructure capacity in terms of the minimum number of
Amazon EC2 instances required are Instance Types, Launch Types, Regions And Availability Zones.
• Only single region confi guration / setup are considered in this scope.
• Provision and confi gure EC2 instances for Web/App layer, RDS DB and ElastiCache layers.
• Provision and confi gure custom EC2 Instances as required to suit FingerTec’s application architecture.
• Custom load balancers will be implemented in this EC2 Instance launched for FingerTec’s functional operations. |
|
| |
| DNS Setup: |
| • Confi gure the relevant domain entries in Amazon Route 53 (only in R53 scope) according to the architecture recommendation. |
|
| |
| Security and IAM: |
• Confi gure the required fi rewall / security group rules for / between the ELB, Web/App layer instances, storage layer and database layer.
• Provision and setup the required IAM (Identity and Access Management) users and
policies. |
|
| |
| Load Balancing Layer: |
• Provision Amazon Elastic Load Balancing for the web setup.
• Confi gure Web/App layers with Amazon Auto Scaling.
• Confi gure the load balancer to point to multiple Amazon EC2 servers to enable nosingle-point-of-failure of Web/App Layer.
• Confi gure Port forwarding, health check frequencies, Load balancing algorithms.
• Confi gure ELB with Amazon Auto Scaling wherever identifi ed.
• Provision and confi gure the custom load balancer for the bridging server setup. |
|
| |
| Storage and CDN: Confi gure and Provision required: |
• Number of S3 buckets and access policies for Snapshots, logs, archives, CDN etc.
• EBS and Ephemeral disks for application storage.
• Required backup policy and implement the snapshot backup solution for the Amazon EC2 servers. |
|
| |
| AWS ElastiCache Layer: |
• Confi gure the identifi ed number( 2 node) of AWS ElastiCache nodes in the identifi ed AZ/Region.
• Pass the ElastiCache confi gurations/credentials to FingerTec’s team for corresponding changes.
• FingerTec’s team will need to use these ElastiCache properties in their confi guration sections accordingly.
• Confi gure AWS CloudWatch Monitoring on the ElastiCache Nodes. |
|
| |
| Database Layer: |
• Confi gure and Provision RDS MySQL instance for Primary Database
• Confi gure Standby RDS instance for High Availability in Multi-AZ Mode
• Confi gure the DB security groups to allow DB access from specifi c machines
• Confi gure the DB Backup Snapshots, Periodic Dumps , Backup retention period
• Confi gure the CloudWatch Monitoring for the RDS Master
• Confi gure 1-2 Read Replica’s in the cases needed. |
|
| |
| Monitoring: |
• Confi gure Amazon CloudWatch to monitor important metrics
• Enable Detailed CloudWatch monitoring for the Web/App layer, Elasticache and Database layer instances
• SNS Integration for alerts on infrastructure parameters such as CPU Utilization, Disk Usage, etc. (parameters available and monitored by CloudWatch)
• Identify and confi gure the 3rd party Website Health monitoring tool (if required)
|
|
| |
| Backup: |
• Create custom scripts for backing up Application Deployment Files in Web/App Layer
• Enable RDS snapshot based backups and Periodic Dumps for RDS database layer
• Error logs and System logs generated in Web/App Layer are rotated and uploaded to S3 using custom scripts |
|
| |
| System Patches: |
| • Update the Operating System, Application server and other server
patches at regular intervals and manage the AMI versions inside AWS infrastructure |
|
| |
| Application Patches: |
| • Deploy the application executable to the AWS production environment. FingerTec Development team will pass the detailed deployment instructions steps/
guides to FingerTec Deployment services team. |
|
| |
| Security Configuration: |
| • Make modifications in AWS Security groups to open new ports IP ranges /close existing ports and IP ranges and manage the IAM on the AWS end. |
|
| |
| AMI Bundling: |
| • Create base AMI (Amazon Machine Image) once the application has been setup and is implemented for Web/App Layer. This AMI will be used for AutoScaling. |
|
| |
| Support: |
| • Register for the required AWS premium support after providing the details about various support plans available at AWS. AWS Premium Support cost is additionally payable to AWS. |
|
| |
