Timer Issue
MCU Board Version V1.3- FIID3001v1.3
‹‹ Back to Main
Part Involved: MCU Board
Component Involved:
1 CMOS Battery
2 Timer Chip


How to check the CMOS Battery:
Apply the multi-meter’s testing pin on both ends of the battery - the result should read 3.2V when fully charged. Replace the battery if the value is lower than 2.5V. If the battery reading is above 3.2V, replace the Timer Chip (2).

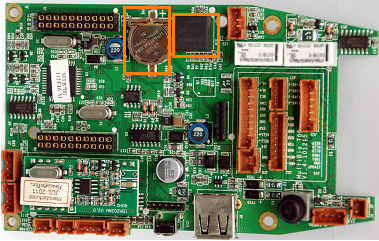

Front View
