TCP/IP Connections Issue - FEM800 ‹‹ Back to Main
Part Involved: Core Board
Component Involved:
1 NTC Transformer
2 Network Crystal
3 Davicom-8000AEP Chip
4 Flash IC Chip


Changing the components:
For the TCP/IP connection issue, replace the NTC Transformer (1) by priority; followed by the Network Crystal (2), and Davicom-8000AEP chip (3). If the mentioned components have been replaced but the connection is still not working, please proceed to change the new Flash IC Chip (4).

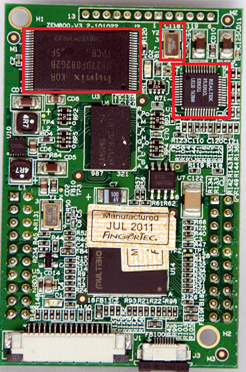

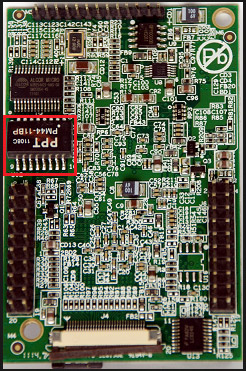

Rear View Front View
