FingerTec Newsletter Vol: 07 Year: 2012

FingerTec News

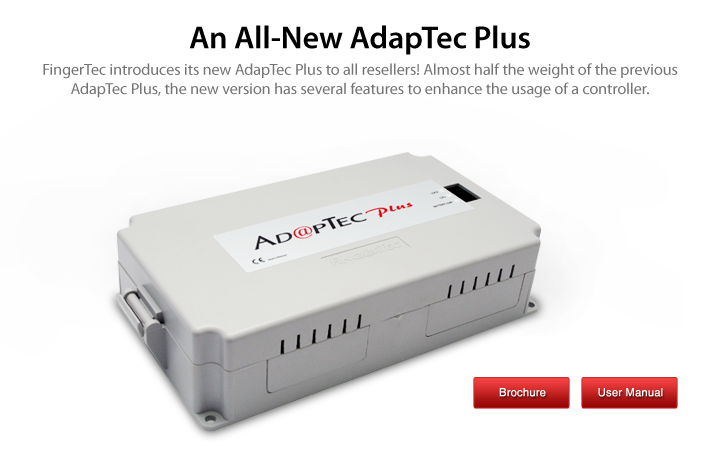

Firstly, the new AdapTec Plus is able to support the NO setting for the door lock accessories such as door strikes and electromagnetic locks. It also has a brand new buzzer feature that works as an indicator every time a door is unlocked, or if there is too high a power input to the AdapTec Plus.

There are a few features that installers would find helpful as well, such as the LED light indicators. There are three LED lights in the AdapTec Plus that indicate to the user that the door lock is working, that the AdapTec processor is in good condition, and that the battery needs to be replaced.

Have a look at the comparison table below for the exact differences:

Feature	AdapTec Plus	New AdapTec Plus
Surface finishing	Zinc	ABS
Weight	1.0 kg	0.6 kg
Input Signal	FingerTec customized Weigand signal (using port D0, D1 & GND) - Door unlock signal (normal verification)	FingerTec customized Weigand signal (using port D0, D1 & GND) - Door unlock signal (normal verification) - Door permanent unlock/lock signal (timer controlled)
Output Signal	FORM C relay - 0.5A Siren (Max) - 3.0A door lock (NC only)	FORM C relay - 0.5A Siren (Max) - 3.0A door lock (NC or NO)
Siren feature	Break –in: Yes Dismantled terminal: Yes Door unlock: No Over voltage: No	Break –in: Yes Dismantled terminal: Yes Door unlock: Yes Over voltage: Yes
LED Indicator	Unlock seconds indicator: No Door lock status: No Processor status: No Battery status: No	Unlock seconds indicator: Yes Door lock status: Yes Processor status: Yes Battery status: Yes
Connector Pins	Fixed	Detachable for flexibility during installation and troubleshooting.

With many other new features, the new AdapTec Plus is now ready to be purchased with any FingerTec terminal! Place your order now, or have a look at the manual for further details.
