Variety of Verification
R3 contains not only fingerprint verification, but also provide other commonly used methods including cards, passwords, and their combinations.
Complete Access Solution
Install the slave, R2c with R3 to achieve a more secure full biometrics system for your in/out entry/exit door access system to block all unauthorized entries and exits.
Manage Remote Data Easily
With Ingress, manage the data of all your remote doors easily, determine the settings of your access control system and get the details of all the access activities from one central location.
Built In Alarm
R3 allows installation of external alarm to your access system to alert you during emergencies and break-ins. Secure your premise with GroupTimeZone and Group Verify functions.
Precise Identity Verification
R3 uses minutiae point matching fingerprint technology, an advanced algorithm to match the stored fingerprint template with the live one to guarantee authenticity.
Data Management Simplified
FingerTec R3 is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer.
TimeZone Enable
Secure your premise with time zone features by R3, providing you total control in your access needs. R3 has Time Zone, Group Time Zone and Group Verify features at your disposal.
Free Firmware & Software Updates
Functions and features are constantly evolving through technological research and industrial needs, hence, our software and firmware updates for our devices come complimentary.

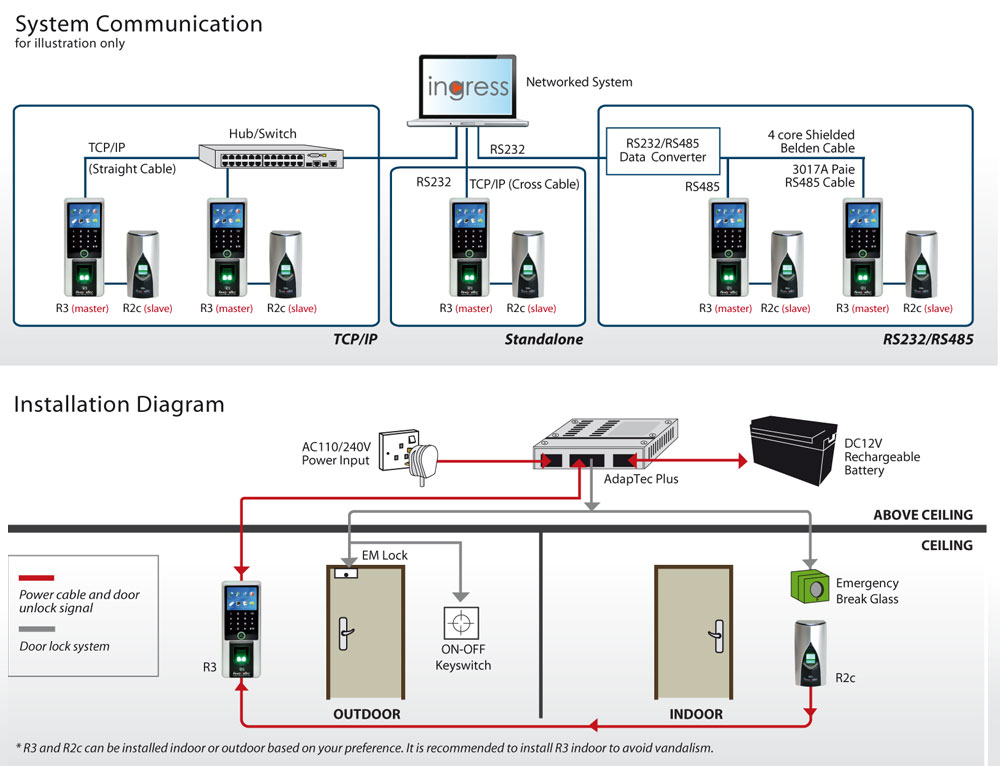

LAYOUT PLAN
SPECIFICATIONS
MODEL R3 (Master) R2c (Slave)
SURFACE FINISHING In-mould labelling (IML), (PC) & (ABS) Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR 400 MHz Managed by master
MEMORY 256 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 10.0 Supports BioBridge VX 10.0
PUSH TECHNOLOGY Yes N/A
DIMENSION (L X W X H), mm 78 x 32 x 190 64 x 42 x 135
STORAGE
• Fingerprint templates 3000 Storage in master terminal
• Transactions 100000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), card & password Fingerprint (1:N) & card
• Recommended fingerprint per user ID 2 Managed by master
• Fingerprint placement Any angle
• Verification time (sec) < 1 Managed by master
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz Yes
• MIFARE: MFIS50/S70, 13.56MHz Make to order
• HID: HID 1326, 26-bit, 125kHz Make to order N/A
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk RS485
• Baud rates 9600, 19200, 38400, 57600, 115200 N/A
• Wiegand 26-bit input/output N/A
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A Managed by master
TIME ATTENDANCE
• Work codes Yes N/A
MULTIMEDIA
• Voice Yes N/A
• Short messaging Yes N/A
• Photo ID Yes N/A
ACCESS CONTROL
• EM lock driving output DC 12V 3A / relay output Managed by master
• Alarm output NO / NC
• Anti passback Yes
VOICE / DISPLAY LANGUAGE
(TERMINAL) (only for R3) 		English (Standard), Arabic, Indonesian, Chinese Traditional (Cantonese), Chinese Simplified, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
Other languages are available upon request.
SOFTWARE LANGUAGE Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese
*N/A: Not applicable
Packaging (2 in 1)
Dimension (mm): 245(L) x 90(W) x 225(H)
Weight: 1.15kg
