| Variety of Verification R2 contains not only fingerprint verification, but also provide other commonly used methods including cards, passwords, and their combinations. |
| Complete Access Solution Install the slave, R2c with R2 to achieve a more secure full biometrics system for your in/out entry/exit door access system to block all unauthorized entries and exits. |
| Manage Remote Data Easily With Ingress, manage the data of all your remote doors easily, determine the settings of your access control system and get the details of all the access activities from one central location. |
| Built In Alarm R2 allows installation of external alarm to your access system to alert you during emergencies and break-ins. Secure your premise with GroupTimeZone and Group Verify functions. |
| Precise Identity Verification R2 uses minutiae point matching fingerprint technology, an advanced algorithm to match the stored fingerprint template with the live one to guarantee authenticity. |
| Data Management Simplified FingerTec R2 is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer. |
| Short Message Display Communicate with your employee by personalizing a short message to be displayed at the terminal when they verify. The message can be directed to an individual or to a group of staff. |
| Workcodes Let your employee experience independence by reporting their whereabouts via R2 workcode function. Select a workcode listed and scan a finger to verify. |

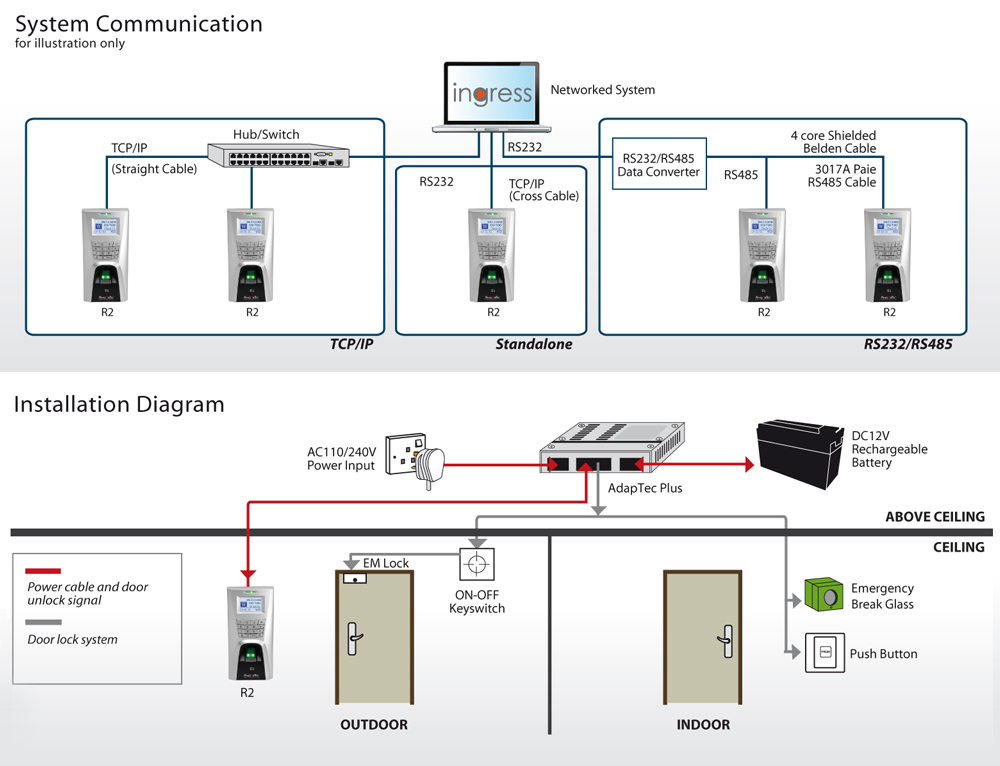

| LAYOUT PLAN |
| SPECIFICATIONS | ||
| MODEL | R2 | |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) | |
| TYPE OF SCANNER | Non coated optical scanner | |
| MICROPROCESSOR | 400 MHz | |
| MEMORY | 128 MB flash memory & 32 MB SDRAM | |
| ALGORITHM | BioBridge VX 9.0 / VX 10.0 | |
| PUSH TECHNOLOGY | Yes | |
| DIMENSION (L X W X H), mm | 94 x 50 x 189 | |
| STORAGE | ||
| • Fingerprint templates | 3000 | |
| • Transactions | 120000 | |
| ENROLLMENT & VERIFICATION | ||
| • Methods | Fingerprint (1:1, 1:N), card & password | |
| • Recommended fingerprint per user ID | 2 | |
| • Fingerprint placement | Any angle | |
| • Verification time (sec) | < 1 | |
| • FAR (%) | < 0.0001 | |
| • FRR (%) | < 1 | |
| CARD TECHNOLOGY | ||
| • RFID: 64-bit, 125kHz | Yes | |
| • MIFARE: MFIS50/S70, 13.56MHz | Make to order | |
| • HID: HID 1326, 26-bit, 125kHz | Make to order | |
| COMMUNICATIONS | ||
| • Method | TCP/IP, RS232, RS485, USB disk | |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | |
| • Wiegand | 26-bit input/output | |
| OPERATING ENVIRONMENT | ||
| • Temperature (°C) | 0 ~ 45 | |
| • Humidity (%) | 20 ~ 80 | |
| • Power input | DC 12V 3A | |
| TIME ATTENDANCE | ||
| • Work codes | Yes | |
| MULTIMEDIA | ||
| • Voice | Yes | |
| • Short messaging | Yes | |
| ACCESS CONTROL | ||
| • EM lock driving output | DC 12V 3A / relay output | |
| • Alarm output | NO / NC | |
| • Anti passback | Yes | |
| VOICE / DISPLAY LANGUAGE (TERMINAL) (only for R2) |
English (Standard), Arabic, Indonesian, Chinese Traditional (Cantonese), Chinese Simplified, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian. Other languages are available upon request. |
|
| SOFTWARE LANGUAGE | Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese | |
 |
| Packaging Dimension (mm): 245(L) x 90(W) x 225(H) Weight: 1.2kg / 1.85kg (with AdapTec Plus) |
 |
 |
 |
 |
 |
 |
 |
 |
