5 Unlocking Credentials Unlock doors using fingerprint, mechanical key, password, card or your smartphone’s Bluetooth connection. |
3 User Group Types Gain better access control management with FingerTec Smart Lock User Group Types: Admins, Regular Users and Temporary Users. |
User Capacity Register as many users as you desire within TimeTec Security App and i-Neighbour App through a smartphone. |
Normally Open Type This particular setting caters for offices or areas with regular visitor access. Thereby, reducing instances resulting in entrances being ‘bottlenecked’. |
Optimal Battery Life Only 4 AA alkaline batteries are required to operate over 6000 accesses. Hence, approximately a year of use before you are faced with the low-battery warning indication. |
Reversible Left-Right Open Changing the handle from left to right and vice versa only requires a latch change. |
Emergency Override Key In case of an emergency like losing a smartphone. TL-400B comes with a concealed override key for accessing the door. |
Downloadable App Android and iOS Apps for i-Neighbour and TimeTec Security are available for those who prefer to use a smartphone in terms of door access. |

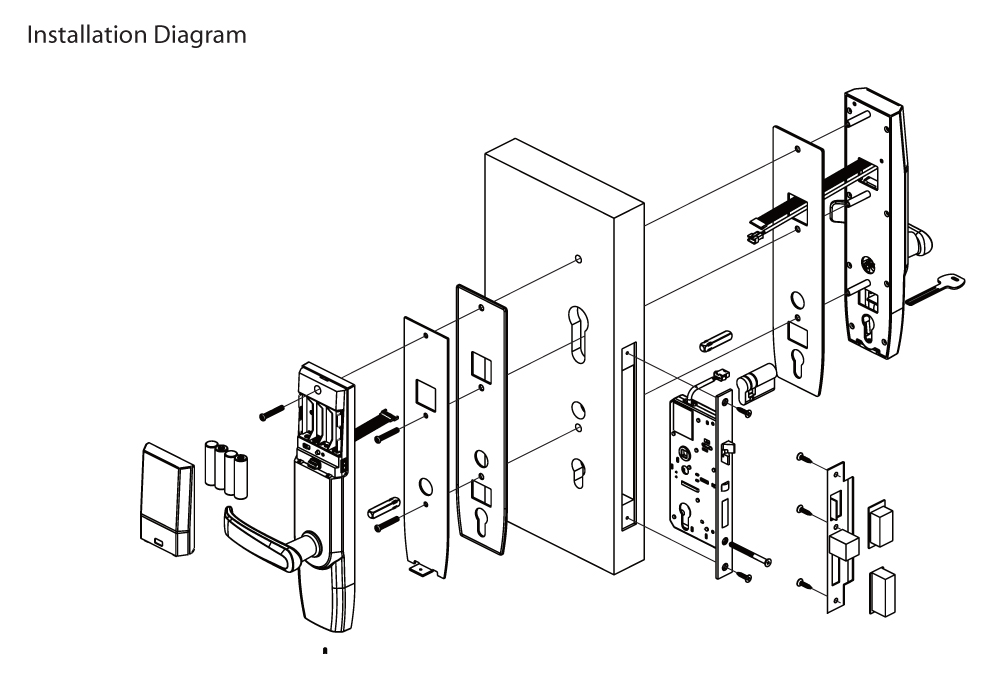

LAYOUT PLAN |
SPECIFICATIONS | |
MODEL | TL-40B |
SURFACE FINISHING | Zinc alloy |
TYPE OF SCANNER/ANTENA | Optical fingerprint scanner |
ALGORITHM | Biobridge VX 10.0 |
RESOLUTION OF SCANNER (dpi) | 560 |
PRODUCT DIMENSION (L X W X H), mm |
Front panel: 310 x 72 x 30 (with handle) |
Back panel: 310 x 72 x 34 (with handle) | |
• Thickness of door, mm | 30-38 (optional), 50-65 (optional) |
• Door latch type | Mortise design with single latch and two deadbolts |
• Inner lock switch | Yes |
STORAGE | |
• Fingerprint templates | 100 |
• Password | 100 |
• Card | 100 |
• Bluetooth | Unlimited users for TimeTec Security App & i-Neighbour App |
FINGERPRINT & VERIFICATION | |
• Fingerprint | 1: N |
• Recommended fingerprint per user ID | 2 |
• Fingerprint placement | Any angles |
• Verification time (sec) | < 1 |
• FAR (%) | < 0.0001 |
• FRR (%) | < 0.1 |
BLUETOOTH VERIFICATION | |
• Communication | Bluetooth 4.0 |
OPERATING ENVIRONMENT | |
• Voice guidance | Yes |
• Temperature (°C) | - 20 to – 55 |
• Humidity (%) | 20 ~ 80 |
• Power input | 4 x1.5v AA battery for 6000 operations |
• Power consumption – static (µA) | < 35 |
• Power consumption – activity (mA) | < 135 |
• Power consumption – driving (mA) | < 200 |
• Antistatic voltage (V) | > 1500 |
• Low battery warning voltage (V) | < 4.5 |
BACKUP UNLOCK MECHANISM | Battery & mechanical key |
MOBILE OS | Android 4.0.2 and above, iOS 8.0 and above |
APP LANGUAGE | Arabic, Chinese Simplified and Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese. Other languages are available upon request |
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information |

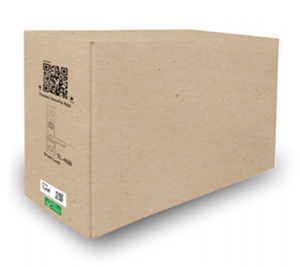

Packaging Dimension (mm) : 298 (L) x 123 (W) x 222 (H) Weight : 4.6 kg |
