| Contactless Identification With Face ID 4d, all you need is one look, and you’re ready to go. Facial recognition makes it easy for you to verify yourself without having to free your hands. |
| Easy Communication
Methods Sync Face ID 4d with a PC using one of these easy-to-use communication methods: TCP/IP or USB flash disk. |
| Get Your Extra Features Here Full colour touch screen, short messaging, work codes, photo display after verification. These are among our many additional features that you get with Face ID 4d. |
| Revolutionary Face
Technology With the latest VX 7.0 face recognition algorithm, face detection during verification and enrollment is now quicker and more accurate. |
Revolutionary Face
Technology
|
| Ergonomically Designed Face ID 4d’s design is engineered specifically to facilitate easy positioning and alignment of your face for an easy and hassle-less verification. |
| Value for Money Face ID 4d was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to business and security, there should be no compromise. |
| Manage Your Data Easily Administration is easy with the Ingress software application. Ingress allows you to remotely manage door activity of all connected terminals, while containing time attendance functions for attendance monitoring. |

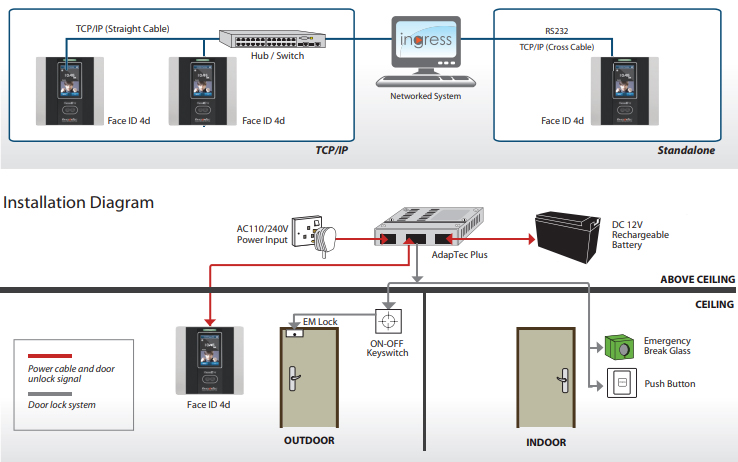

| Layout Plan |
| System Communication |
| for illustration only |
| SPECIFICATIONS | |
| MODEL | Face ID 4d |
| SURFACE FINISHING | Acrylonitrile butadiene styrene/polycarbonate blend |
| TYPE OF SCANNER | High resolution infrared camera |
| MICROPROCESSOR | 1.2Ghz |
| MEMORY | 128 MB RAM & 256 MB Flash |
| ALGORITHM | Face BioBridge VX 7.0 |
| PUSH TECHNOLOGY | Yes |
| PRODUCT DIMENSION (L X W X H), mm | 151 x 26 x 150 |
| STORAGE | |
| • Face templates | 3000 |
| • Cards | 10000 |
| • Transactions | 200000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Face (1:1, 1:N), card & password |
| • Verification time (sec) | <1 |
| • FAR (%) | < 0.01 |
| • FRR (%) | < 0.1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Make to order |
| COMMUNICATIONS | |
| • Method | TCP/IP, USB Host (Optional WiFi) |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | 12V DC 3A |
| TIME ATTENDANCE | |
| • Siren | Built-in (Optional external) |
| • Work codes | Yes |
| • Fast transaction checking | Yes |
| MULTIMEDIA | |
| • Greeting voice | Yes |
| • Display | 2.8” 65k color TFT touch screen panel |
| • Photo-ID | Yes |
| • Short messaging | Yes |
| • Photo capture | Yes |
| • Day light saving timer | Yes |
| ACCESS CONTROL | |
| • EM lock driving output | 12V DC / relay output |
| • Alarm output | NO/NC |
| • Door sensor | Yes |
| • Anti passback | Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal), Spanish. Other languages are available upon request. |
| SOFTWARE LANGUAGE | English (Standard), Arabic, Bulgarian, Chinese (Simplified/Traditional), French, German, Hindi, Indonesian, Kurdish, Malay, Persian, Portuguese, Russian, Spanish, Thai, Vietnamese |
| NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information |
| *N/A: Not applicable |
 |
| Packaging Dimension (mm): 298(L) x 123(W) x 222(H) Weight : 1.52 kg |
 |
 |
 |
 |
 |
