Brochure

  Customized to Fit Perfectly
The Enclosure Plus is customized to accommodate almost all FingerTec terminals, ensuring a perfect fit for each compatible model.
  Optional Built-in Heater
Now with the made-to-order thermostat feature, you can maintain the optimal temperature of your FingerTec terminal, even during colder seasons.

  Robust Material
The Enclosure Plus is made of zinc metal that protects the FingerTec terminal while the tempered glass does not fade, discolor or crack easily
  Card-friendly
The FingerTec terminal can still perform card verification even when secured inside the Enclosure Plus. The 3mm-thick tempered glass allows the card signal to be transmitted.

  Dustproof and Waterproof
The Enclosure Plus helps protect your terminal from dust and vandalism. So don’t hesitate to install your terminals outdoors anymore!
  Simple Installation
Installing the Enclosure Plus is easy. With a mounting plate included, the Enclosure Plus comes with a user-friendly DIY installation guide for a simple installation.

  Lock to Secure
For an additional security measure, the Enclosure Plus can be locked up and secured to prevent unauthorized access and keep the terminal from harm’s way.
  See-Through Panel
Never lose sight of your device. The Enclosure Plus is easy on the eyes with the material allowing 92% of visible light through at a thickness of 3mm.

Layout Plan

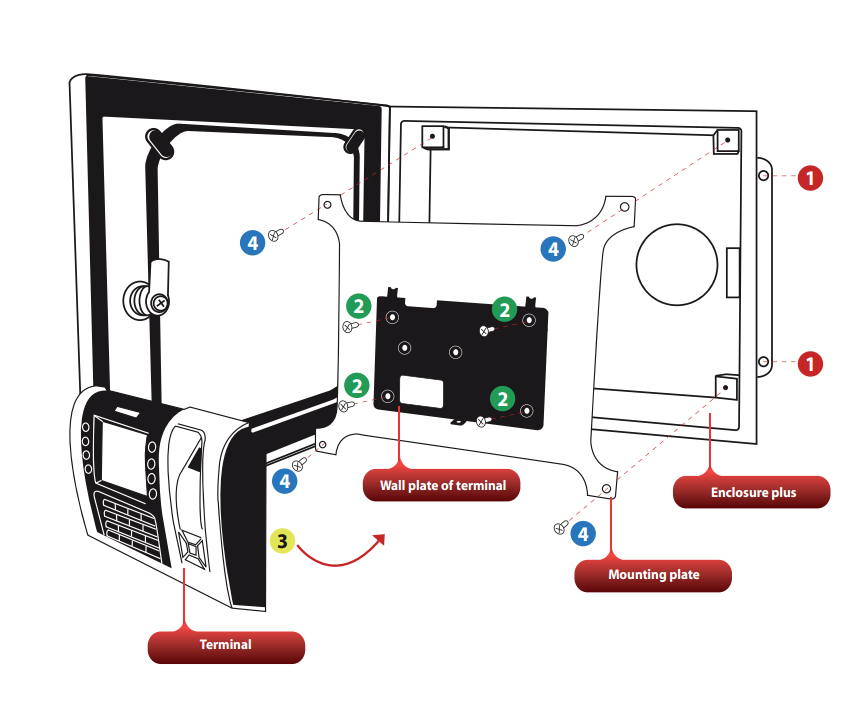

Installation Diagram
1. Mark the installation point and make sure all the wires are ready
2. Mount the Enclosure Plus on a wall or a surface and tighten the screws to secure its position.
3. Check to make sure all wires pass through.
4. Position the back plate to the installation platform. Tighten the screws to secure the back plate.
5. Hang the terminal on the back plate and tighten the screws to secure the terminal
6. Check to make sure everything is mounted firmly.
7. Place the mounting plate with the terminal into the Enclosure Plus and tighten the 4 screws to secure it firmly.
Note: Installation of enclosure with access control models
Before you start with step no. 1 above, make sure that all the terminal's wires are put through the enclosure, back plate and wall plate, and all the wires are connected to the terminal's port correctly

Specifications
DIMENSIONS (L X W X H), mm 316 x 94 x 268
WEIGHT, kg 2.92kg
MATERIAL Zinc metal
THICKNESS 1mm
IP 56 Yes

Packaging
Dimension (mm) : 350(L) x 90(W) x 300(H)
Weight : 3.2 kg
