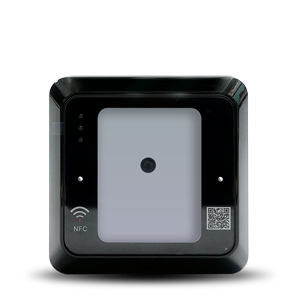

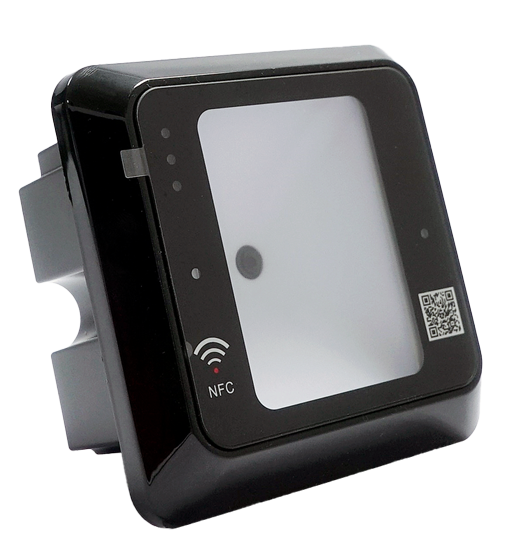

QR 110
Unlock With QR Code

2 YEARS LIMITED WARRANTY

Reading Speed and Interval
Performance at Its Finest

Speed
< 0.2 sec

Interval
< 0.5 sec

Verification & Communication
Different Credentials to Cater to Unique Needs

Verification

QR Code

Communication

	Wiegand
	RS485


Wiegand	RS485

Visitor Pass
Multi-Function Reader

Create a time-sensitive QR code that sets temporary access for visitors.

Low Implementation Cost
Simple Yet Effective

By utilising a smartphone, users can carry the QR code to gain access without having to invest in additional tokens or gadgets.

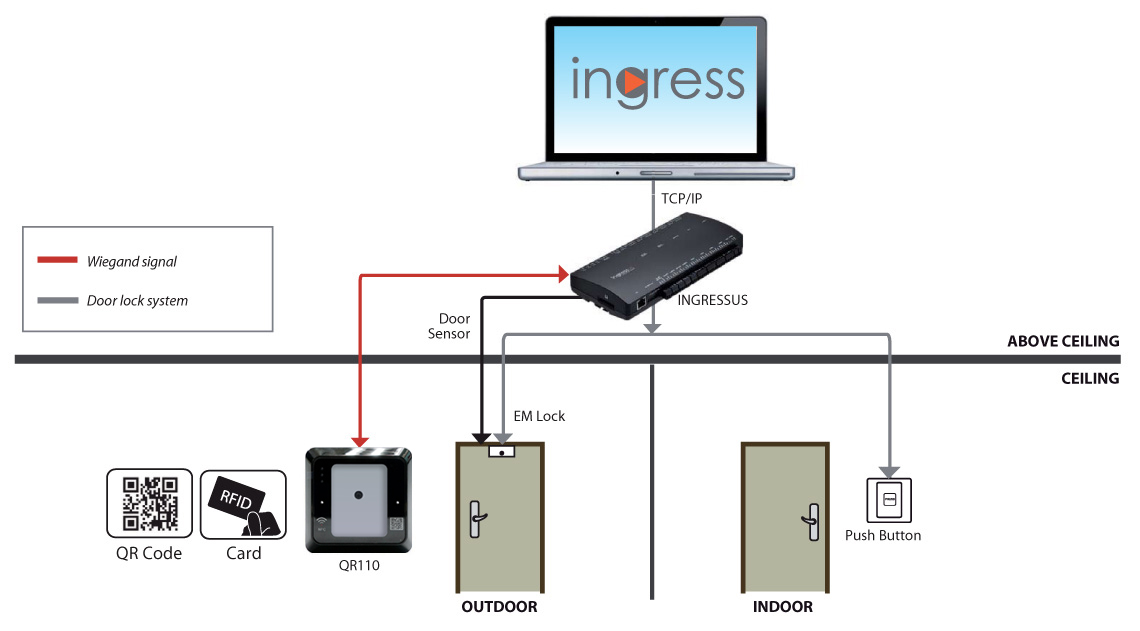

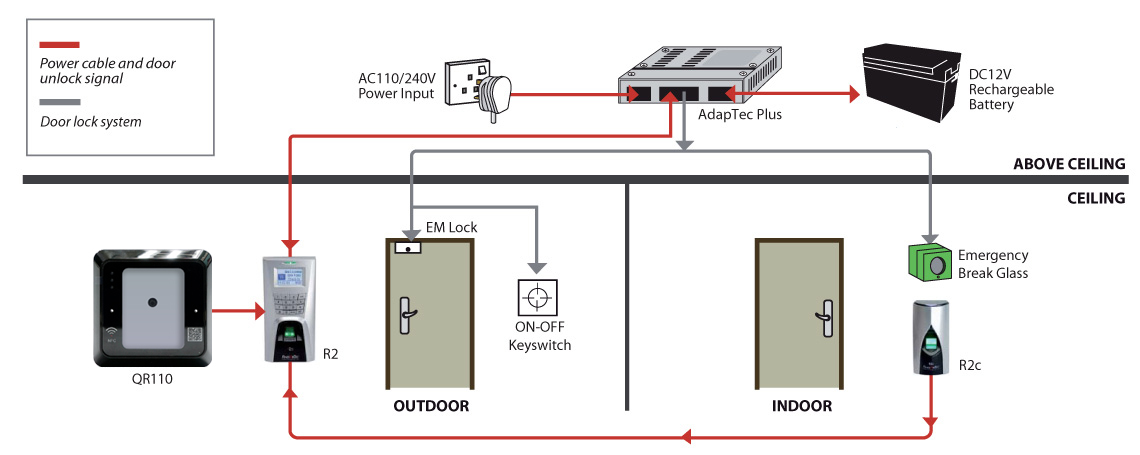

Layout Plan

Installation Diagram
For illustration only

R2 and R2c can be installed indoors or outdoors based on your preference. It is recommended to install R2 indoors to avoid vandalism

Specification

MODEL	QR110
DIMENSION (L X W X H), mm	86 x 40 x 86
CREDENTIALS	QR Code
OUTPUT FORMAT	Wiegand 26/34
COMMUNICATION DISTANCE	Wiegand < 100m RS485 < 1200m
WORKING VOLTAGE	DC 9 ~ 16V
WORKING CURRENT	< 100mA
WORKING ENVIRONMENT	Temperature (°C): -10 ~ 70 Humidity (%): 10 ~ 70 (Indoor use)
SENSING DISTANCE	QR Code (cm): 3~10
READING SPEED	< 0.2 seconds
READING INTERVAL	<0.5 seconds
SUPPORT	Q2i, R3, R2, Face ID 3, Kadex, m-Kadex, Ingressus I/II/IV
