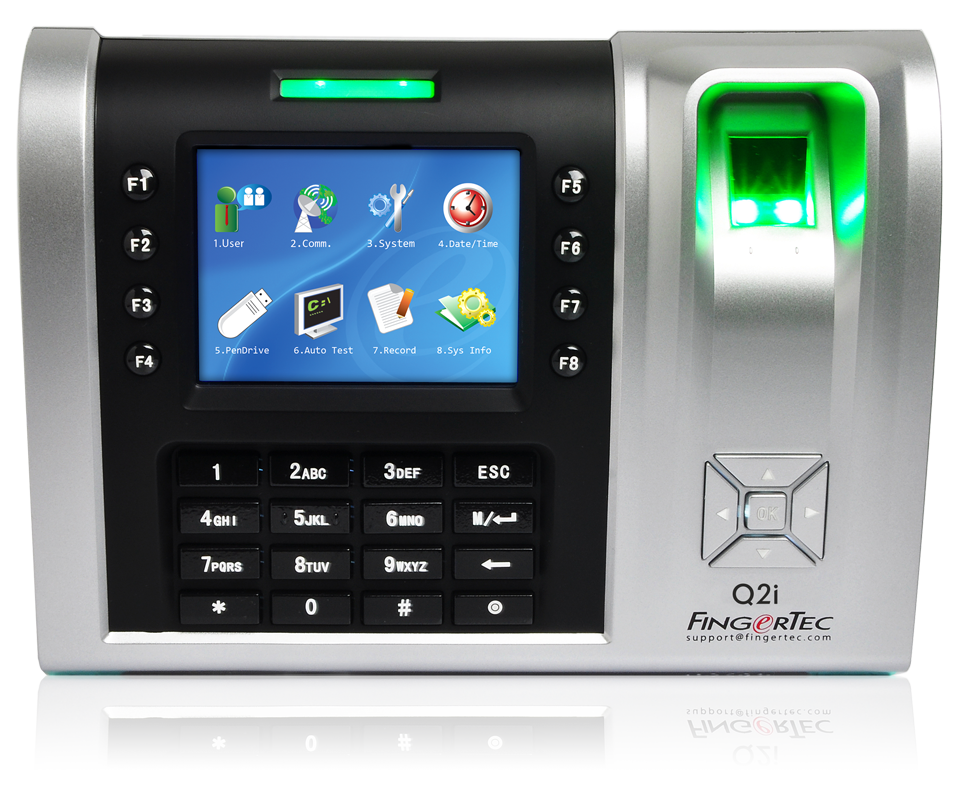

Q2i
A Secure Device for a Secure Workplace



2 YEARS LIMITED WARRANTY
Greater Capacity

Perfectly Adequate For Your Needs
Transactions     200,000
Fingerprints 10,000
Versatility to Its Fullest Extent

Meet Various Needs
Verification
Fingerprint
Password
Password Fingerprint


Communication
TCP/IP
RS232 or RS485
USB disk
TCP/IP RS232 or RS485 USB disk
Efficient Verification

Hasty & Accurate
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed
Robust & Heat-Resistance
Made to Last
Layout Plan

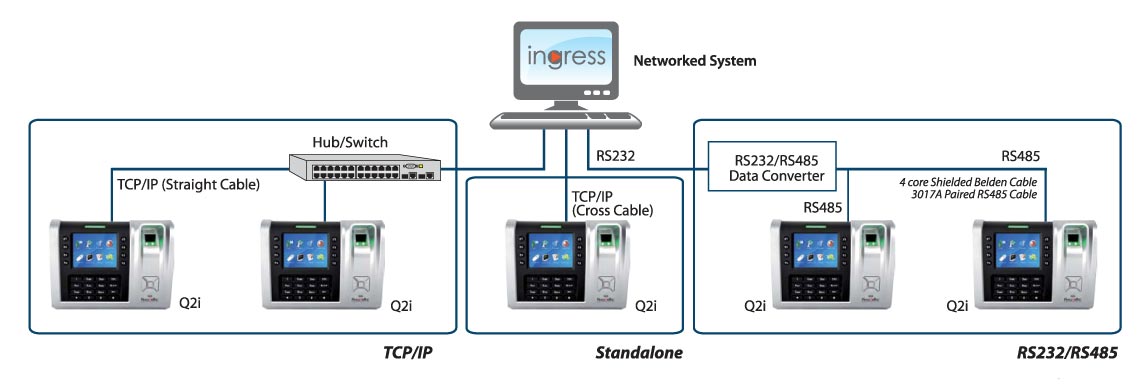

System Communication
For illustration only

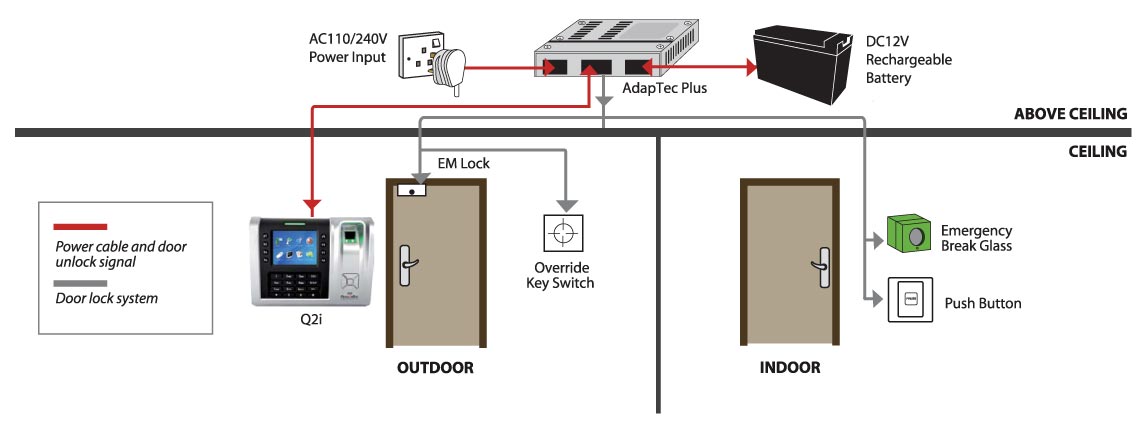

Installation Diagram
Specification

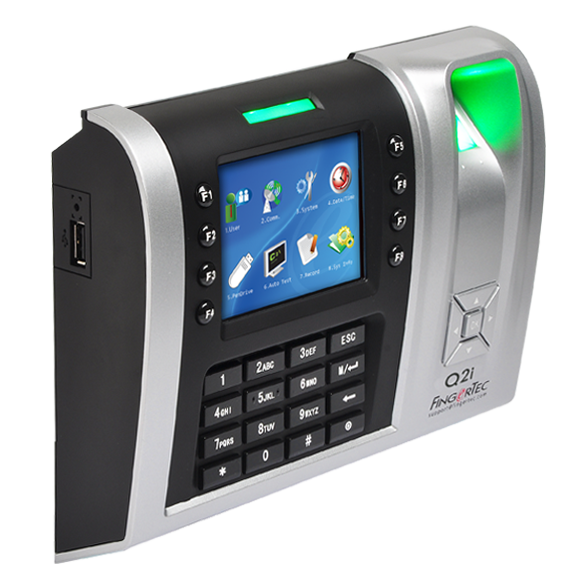

MODEL Q2i
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non-coated optical scanner
PROCESSOR 800 MHz
MEMORY 256 MB flash memory & 64 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 200 x 56 x 160
STORAGE
• Fingerprint templates 10000
• Transaction logs 200000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Siren Built-in (Optional-External)
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.5” 65k colour TFT screen
• Photo-ID Yes
• Short messaging Yes
ACCESS CONTROL
• EM lock driving output DC12V3A/ Relay output
• Alarm output NO/NC
• Anti-passback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal)and Spanish.
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

Ingress
Access Control & Time Attendance

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

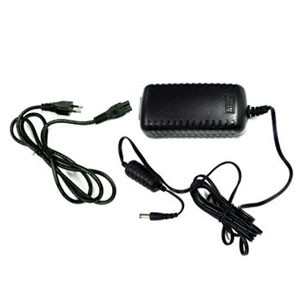

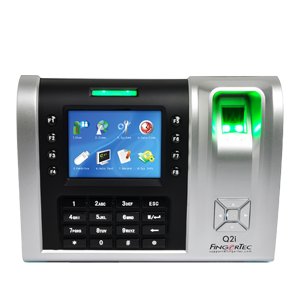

Q2i Back Plate Power Adaptor

Product Card

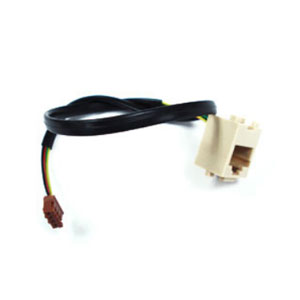

TCP/IP Connector

Wire Connectors

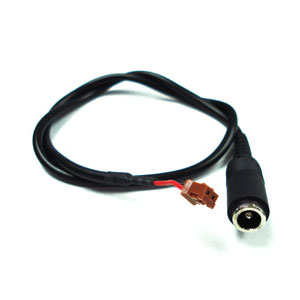

Power Connector

Star Screwdriver

A Packet of Bolt

Diode

Product Information
Pricing: $$$
