i-Kadex
Cost-Effective Access Solution



2 YEARS LIMITED WARRANTY
Essential Biometrics With Easy Deployment
Verification
Card


Communication
Wiegand

Primary terminal
Comprehensive Card Options

Standardize One Option For All Card Access

RFID • MiFare
Third-Party Controller
Connect with an Ingressus controller or third-party controller to function as a primary terminal.
Compact Design
Fits in Most Narrow Spaces and Door Frames
Dustproof with Water Resistance

IP65 Rated

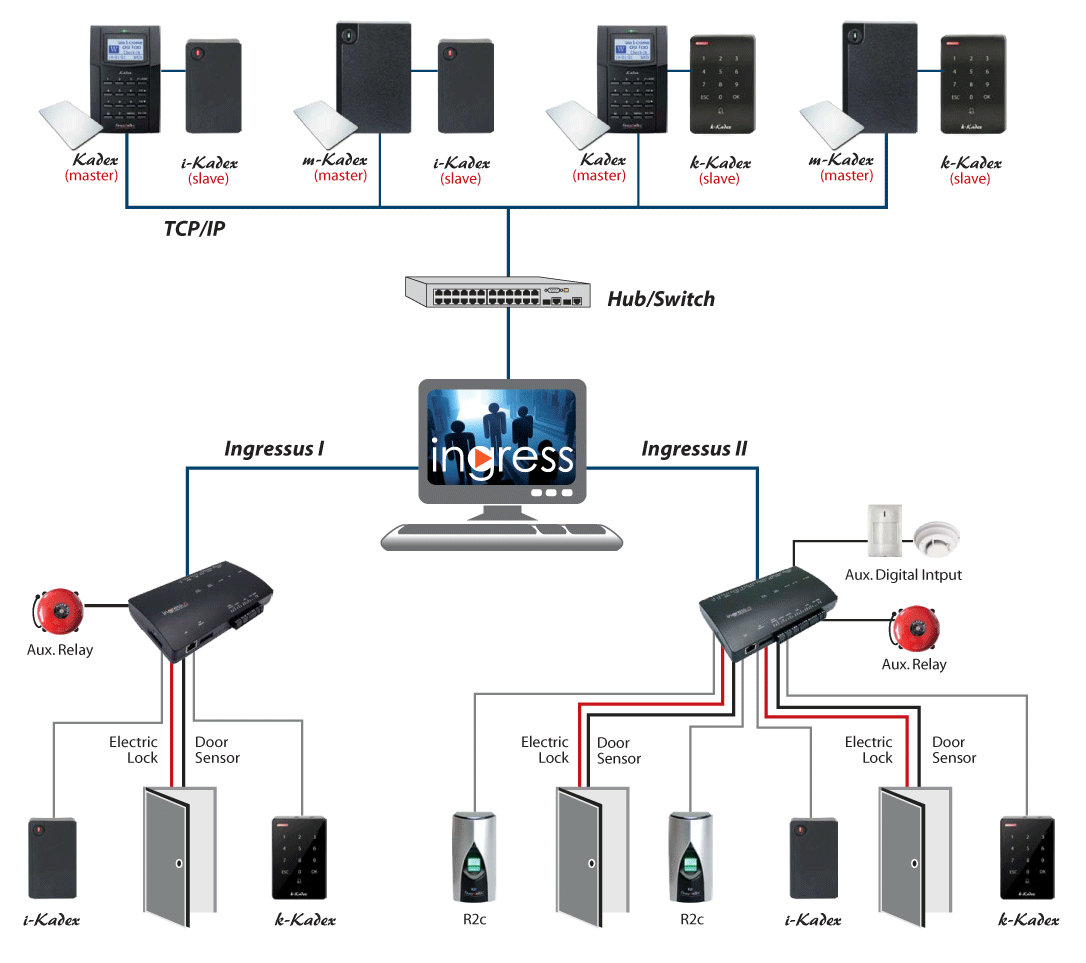

Layout Plan
System Communication
For illustration only
Specification
MODEL i-Kadex
SURFACE FINISHING Polycarbonate
TYPE OF ANTENNA RFID
PROCESSOR Managed by primary terminal
MEMORY
ALGORITHM
PRODUCT DIMENSION (L X W X H), mm 55 x 15 x 100
STORAGE
• Card Managed by primary terminal
• Transaction logs
ENROLLMENT & VERIFICATION
• Methods Card
• Card per user ID Managed by primary terminal
• Reading distance, mm 40 ~ 80 (RFID), 30 ~ 50 (Mifare)
• Verification time (sec) Managed by primary terminal
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
COMMUNICATIONS
• Method Wiegand
• Wiegand 26 bit output
OPERATING ENVIRONMENT
• Temperature (°C) -10 ~ 70
• Humidity (%) 20 ~ 80
• Power input DC 12V 1A
ACCESS CONTROL
• EM lock driving output Managed by primary terminal
• Alarm output
• Anti-passback
Software
Beyond Biometrics, Beyond Connectivity
Ingress
Access Control & Time Attendance
What's in the Box

i-Kadex

Product Card


A Packet of Bolt
