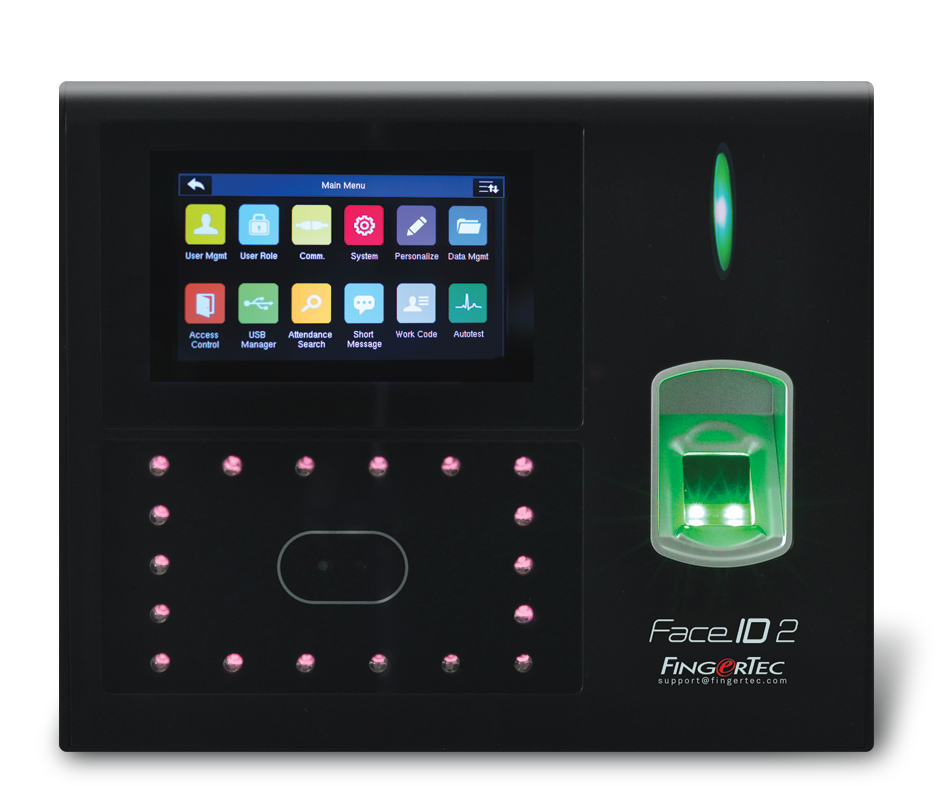

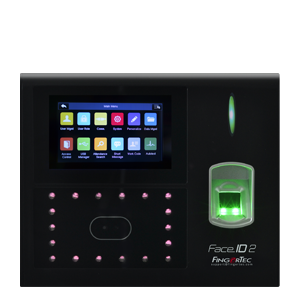

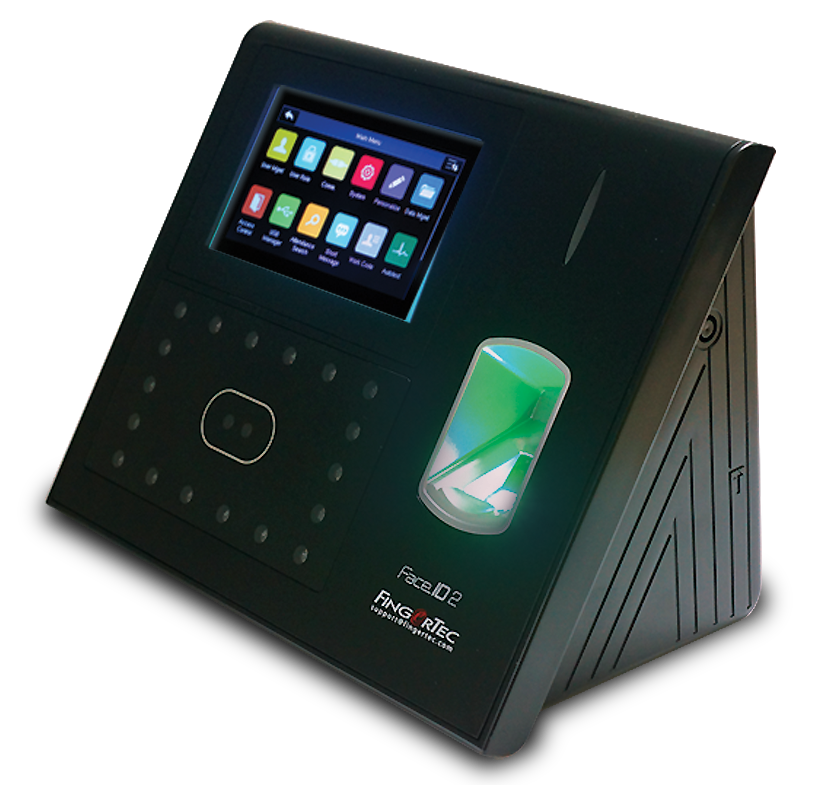

| MODEL |
Face ID 2 |
| SURFACE FINISHING |
Acrylonitrile Butadiene Styrene (ABS) & Acrylic |

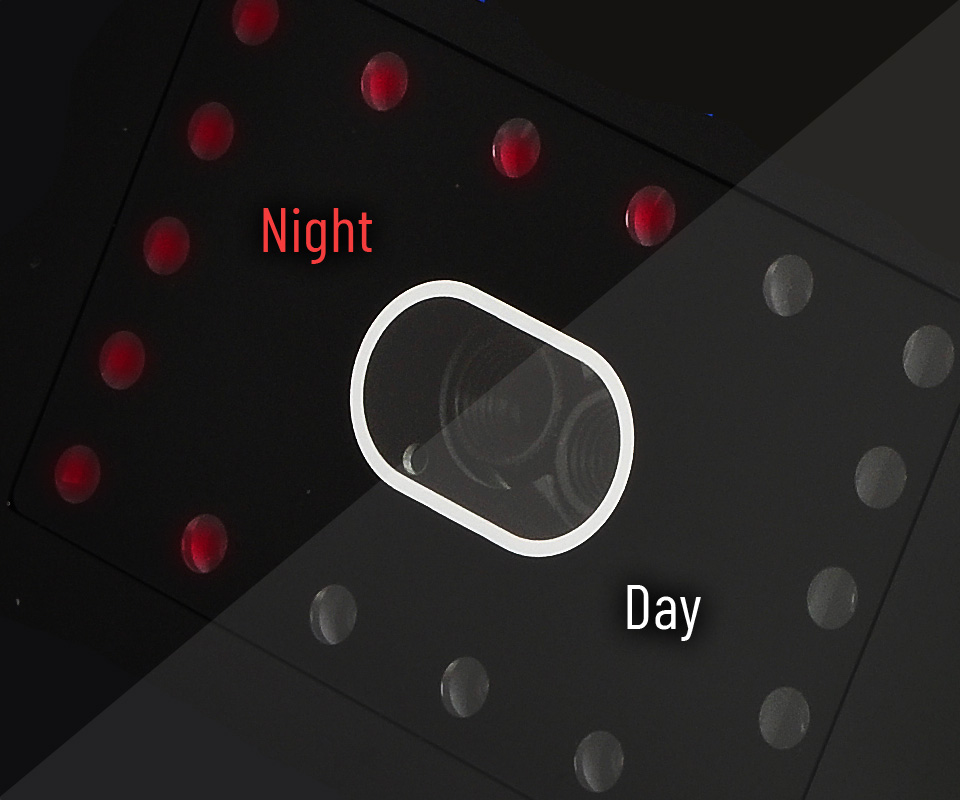

| TYPE OF SCANNER |
Hi-res infrared camera & fingerprint scanner |
| PROCESSOR |
1.2GHz |
| MEMORY |
128MB Nand flash & 64MB Nand flash |
| ALGORITHM |
Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0 |
| PRODUCT DIMENSION (L X W X H), mm |
194 x 110 x 145 |
| STORAGE |
| • Fingerprint templates |
10000 |
| • Face templates |
1200 |
| • Transaction logs |
200000 |
| ENROLLMENT & VERIFICATION |
| • Methods |
Face (1:1, 1:N), fingerprint (1:1, 1:N), password |
| • Recommended fingerprint per user ID |
2 |
| • Fingerprint placement |
Any angle |
| • Verification time – Face, sec |
<2 |
| • Verification time – Fingerprint, sec |
< 1 |
| • Fingerprint |
FAR < 0.0001%, FRR < 0.1% |
| • Face |
FAR < 0.01%, FRR < 0.1% |

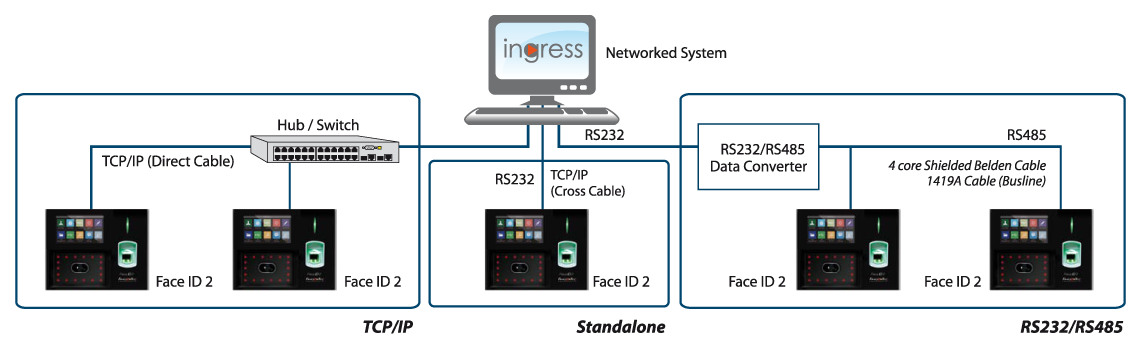

| COMMUNICATIONS |
| • Method |
TCP/IP, RS232, RS485, USB disk |
| • Baud rates |
9600, 19200, 38400, 57600, 115200 |
| • Wiegand |
26-bit output |
| OPERATING ENVIRONMENT |
| • Temperature (°C) |
0 ~ 45 |
| • Humidity (%) |
20 ~ 80 |
| • Power input |
DC 12V 3A |
| TIME ATTENDANCE |
| • Siren |
Internal and external |
| • Work codes |
Yes |
| • Fast Transaction Checking |
Yes |
| MULTIMEDIA |

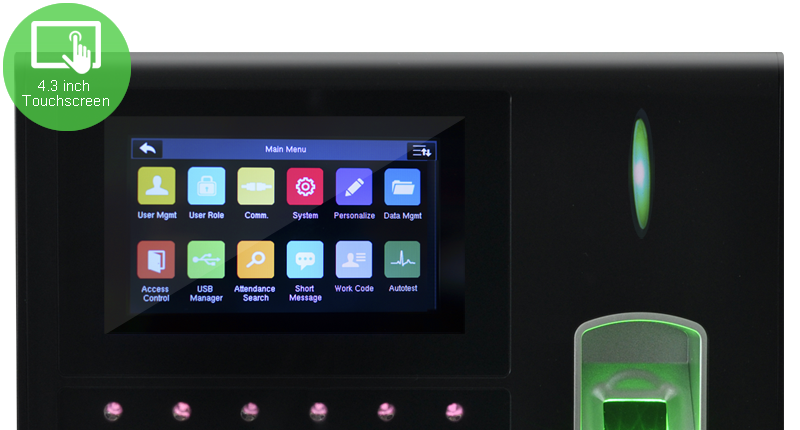

| • Display |
4.3” 65K color TFT Touch Screen Panel |
| • Photo-ID |
Yes |
| • Short messaging |
Yes |
| • Day Light Saving Timer |
Yes |

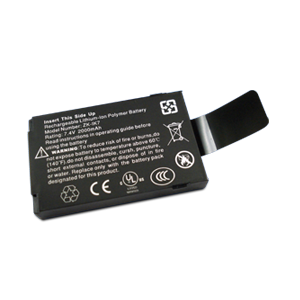

| • Internal Backup Battery |
Yes (DC 12V, 2000mAh) |

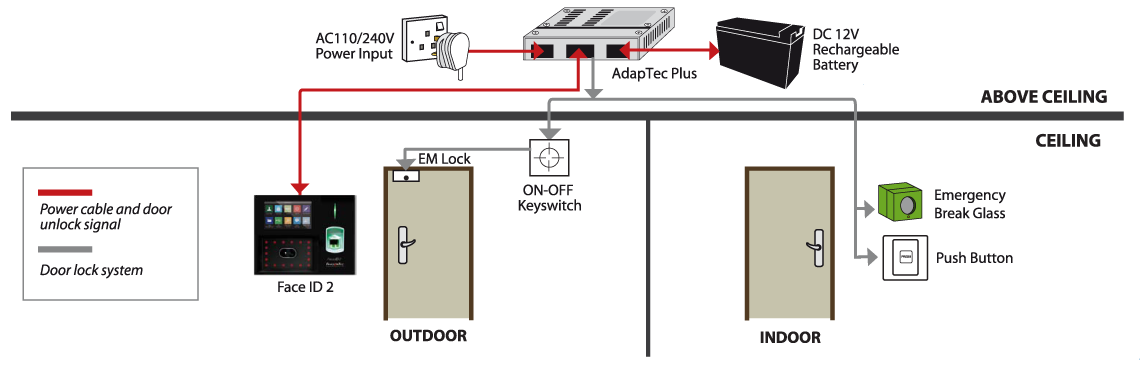

| ACCESS CONTROL |
| • EM lock driving output |
DC12V / Relay output |
| • Alarm output |
NO/NC |
| VOICE / DISPLAY LANGUAGE (TERMINAL) |
English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified,
Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
Other languages are available upon request. |
