| 1. |
Click Fire Alarm from the left panel. |
| 2. |
Click Add Zone. |
| 3. |
Name the Zone, e.g.: All doors. |
| 4. |
Click Add Device. |
| 5. |
Select Ingressus from the list. |
| 6. |
Name the Ingressus controller. |
| 7. |
Press Edit at the Details panel. |
| 8. |

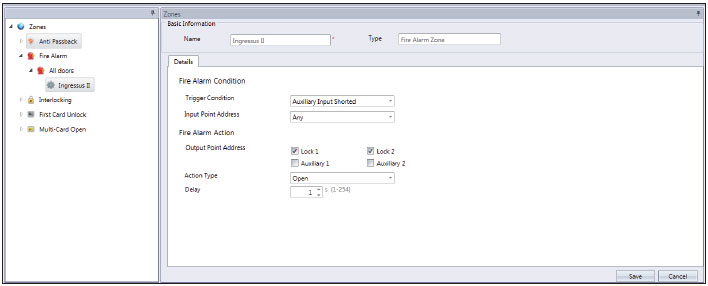

Configure the Fire Alarm Condition. |
| |
Trigger condition: To define the action that will trigger the fire alarm in Ingressus. You can either use
sensors (connecting to AUX port at Ingressus) or key command from slave terminals (insert special password,
verification of duress finger). For example, select Auxiliary Input Shorted if you are using smoke/
heat sensor to detect fire. The sensor connects to Ingressus at its AUX Input port. It only send signal to
Ingressus in case it detects smoke or heat. |
| |
Input point address: To define the type of input to Ingressus to trigger fire alarm. Select Any if you are using
slave terminals as input, or Auxiliary Input Port 1 and 2. You will only find Auxiliary Input Port 1 if you
are installing with Ingressus I. |
| 9. |
Configure the output from Ingressus during fire alarm. |
| |
Output point address: To define the type of action given from Ingressus during fire alarm, either Lock or
Auxililary Output. Check the box LOCK 1 and 2 if you want to control door lock during fire alarm. Select
Auxiliary 1 and 2 if you are connecting to any sensor supporting auxiliary output. |
| |
Action Type: To define Close, Open or Normal Open as outputs from Ingressus. |
| |
Close – Ingressus outputs NC relay signal from the AUX port. The NC relay signal can turn on the 3rd party circuit, e.g.:
turning on siren to alert users. |
| |
Open – Ingressus outputs NO relay signal from AUX port. The NO relay signal can turn off the 3rd party circuit, e.g.:
turning off power to door lock system. |
|
If you have selected Lock 1 and 2 under Output point address, select Open to unlock doors during fire alarm. |
| |
Delay – The time duration to wait before action happens. |
| 10. |
Sync settings to the Ingressus controller. |
