Component Involved:
| 1 | 5V Regulator |
| 2 | 12V Regulator |
| 3 | Power IC |
| 4 | IC Chip |
How to check regulator:
Attach multi-meter testing pen to both end of regulator, measure 5v/12v while main power supply to MCU board.
Replace it if the values lower than 5v/12v.
If Regulator works well, replace the Power IC (3) at priority, follow by IC Chip (4)
 |

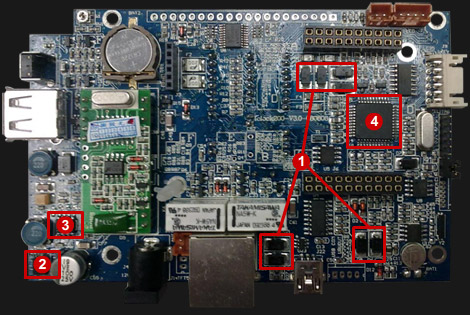

| MCU Front |
