Timer Issue - MCU Version V1.4 ~ 100901 ‹‹ Back to Main
Part Involved: MCU

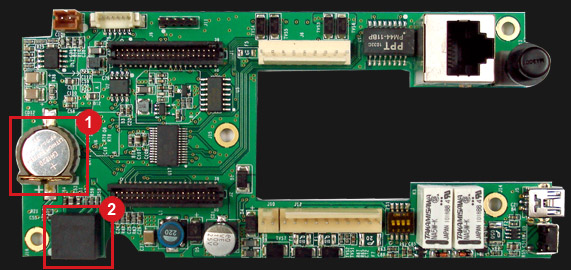

Component Involved:
1 CMOS Battery
2 Timer IC


How to check Battery:
Attach multi-meter testing pin to both end of Battery, measure 3.2V after fully charge.
Replaced it if the values lower than 2.5V If Battery works well, replaced the Timer IC (2) at priority.
