Configuration of Work Code in i-Kiosk 100 and i-Kiosk 100 Plus

You do not need to manually configure work code in i-Kiosk 100 or i-Kiosk 100 Plus. You can now configure the work codes and upload them to the readers directly. To do this, please follow steps as below:

Step 1

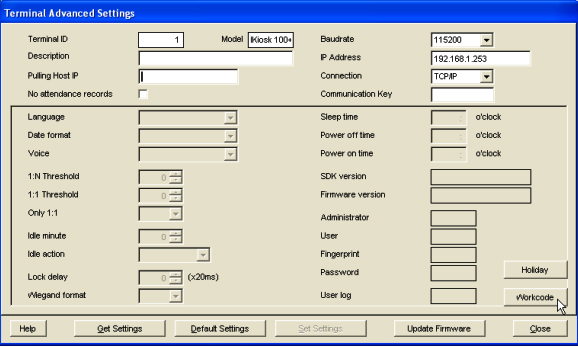

In Setup Terminal page, press Advance Settings and this new window will pop up.

Click “WorkCode” to start configuring the work codes.

Step 2

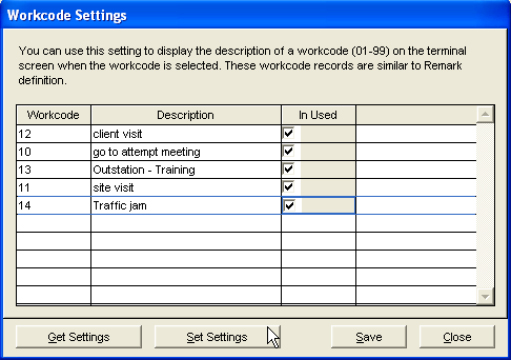

Insert the details into the corresponding columns.
Work Code – Number to represent the work codes. The number must be 2 digits.
Description – The name of the work code.
In Used – Tick to include this work code when uploading it to the readers.

Press “Set Setting” to send the work codes to the readers
Press “Save” to save the settings.
Press “Close” to end.
You can check the work codes assigned in the terminal by pressing “Get Settings”.
