Low initial investment, and because Smart Barrier BLE-2 is part of i-Neighour smart community solution.

No more winding down of window to flash card which will cause wetness during rainy days or exposure to robbery threats for the drivers.

Fast and capable of reducing traffic congestion during peak hour.

Current long-range RFID barrier system can be maintained and integrated with i-Neighbour smart community system if the management still wanted to keep the system.

All entry and exit images can be recorded for visual evidence if installed together with surveillance cameras.



Low maintenance cost due to its implementation is based on BYOD, bring your own device concept.

Using Bluetooth communication, a comfortable reading distance of 10 meters between relay board and smart phone.

Your vehicle would be safe at home when you are away abroad as your credential is not in the car, but a smart phone that tag along with you.

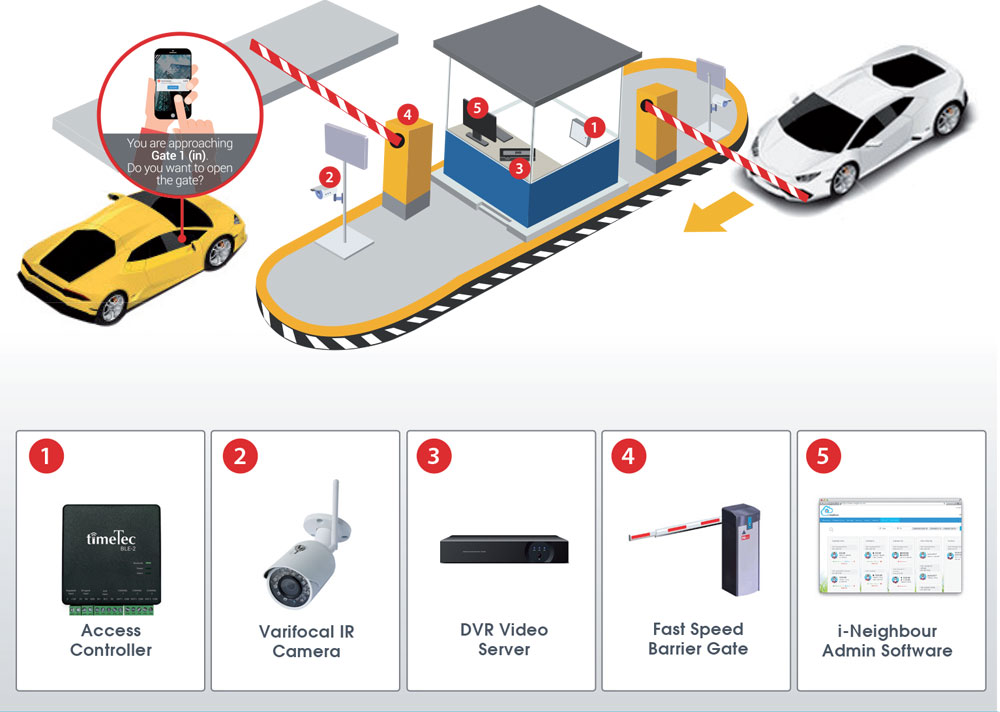

Installation Diagram * for illustration only

When it comes to the barrier gate installed at the guard house, an individual user can use his/her mobile app to command the gate to open. The BLE 2 Gate Control Relay board that has been installed at the barrier gate will always broadcast its unique ID for a fixed coverage area. When a user and his/her vehicle comes into the zone, his/her mobile app will receive a unique ID at a fixed level of signal strength. The mobile app then authenticates the accessibility through this gate based on that unique ID. The mobile app will display the message on screen if a permission is granted.

A user can tap OPEN GATE and the mobile app will send a command to BLE 2 Gate Control Relay board to open gate. The user then has to unlock the smartphone to access the main screen and send unlock command by using push notification.

SPECIFICATIONS
Model BLE-2
Channels 2 FORM C Relay output, NO/NC selected via jumper Weigand 26-bit input
Dimension (mm) 180 (L) x 231 (W) x 62 (H)
Weighing (kg) 0.6
Power input 9 - 24 VDC
Working temperature °C 0-45
Humidity (%) 20-80
Card Storage 1,000
Communication Bluetooth Low Energy (BLE) 4.2, Weigand 26-bit input
Effective Distance (m) 5m for Mobile App
LED indicator Yes
Transaction records Unlimited, stored in cloud server
Event capacity Unlimited, stored in cloud server
Mobile OS Android 4.0.2 and above
iOS 8.0 and above
App & Cloud TimeTec VMS, TimeTec Access and i-Neighbour
Language (App & cloud) Arabic, Chinese Simplified, Chinese Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request.
NOTE: Specifications are subject to change without prior notice.

Packaging
Dimension (mm) : 173 (L) x 60 (W) x 135 (H)
Weight : 0.3kg
