Experience the simplicity of efficient fingerprint technology in time clocking with FingerTec TA100
Fingerprint Series Time & Attendance System. FingerTec TA100 series offers a ‘touch-and-go’ concept
with its powerful one-to-many identification technique which can verify a user with only a touch of
fingerprint on the sensor. Neither advance keying in of employee identification number is required nor
is time clocking card needed to record time using the FingerTec TA100 series. All users have to do are
to verify their enrolled fingerprint at FingerTec TA100. The verification done in less than 2 seconds
makes the FingerTec TA100 series an effective time and attendance system for any office and factory
environments.
The simplicity of the FingerTec TA100 series extends to its management system where the data recorded
at the FingerTec TA100 series readers can be downloaded into Windows based Time Control
Management System TCMS V2 software, for viewing, handling, and generation of useful reports. The
employer can easily manage all data from all FingerTec TA100 series readers via a PC and employee’s
performance can be measured accordingly. The accuracy of the data makes the FingerTec TA100 series
escapes false claims and ‘buddy-punching’ occurrences, while simultaneously facilitates punctuality and
productivity.
The FingerTec TA100 Fingerprint Series Time & Attendance System simplifies your time clocking system
while giving you the efficiency you need to manage your human resources |
| |
| FEATURES & BENEFITS |
| TIME ATTENDANCE |
| • |
Eliminating “buddy-punching” incidents |
| • |
Collecting clocking data systematically |
| • |
Managing data fast and effective via software |
| • |
Providing ease of use with combination of fingerprints,
password and RFID/MIFARE/HID cards |
| • |
Complete with build-in siren feature |
| |
| CONNECTIVITY |
| • |
TCP/IP, RS232 and RS485 to connect to PC |
| • |
USB port available to ease data transfer |
| • |
Multi-reader managed by powerful TCMS V2 |
|
|
| EXTRA FEATURES |
| • |
Workcode is available to allow users to input clocking reasons |
| • |
Short message display on screen to broadcast company information to users |
| • |
Private message short message display intended for particular users |
| • |
Local language greetings and display available |
|
|
| |

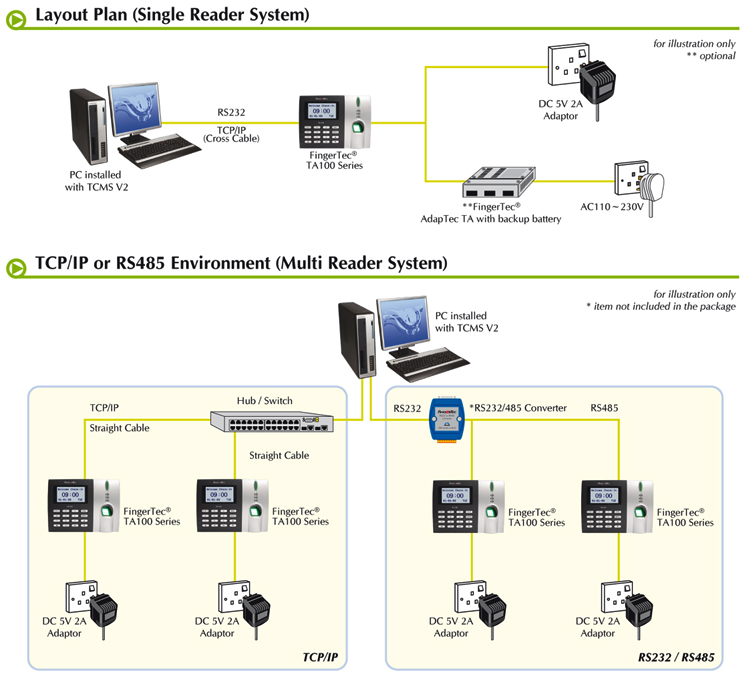

| Layout Plan |
 |
| |
| Specifications |
| MODEL |
TA102 |
TA103 |
TA100T |
TA103-R |
| SURFACE FINISHING |
Acrylonitrile Butadiene Styrene (ABS) |
| TYPE OF SCANNER |
Optical |
| PRODUCT DIMENSION (L X W X H), mm |
190 x 52 x 140 |
| STORAGE |
| • Fingerprint templates |
1500 |
2800 |
1000/ 1500 |
2800 |
| • Transaction |
100000 |
120000 |
30000/ 100000 |
120000 |
| ENROLLMENT & VERIFICATION |
| • Methods |
Fingerprint (1:1, 1:N), Password |
Fingerprint (1:1, 1:N), Password & Card |
| • Recommended fingerprint per user ID |
2 |
| • Fingerprint placement |
Any angle |
| • Verification time (sec) |
< 1 |
| • FAR (%) |
< 0.0001 |
| • FRR (%) |
< 1 |
| CARD TECHNOLOGY |
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) |
N/A |
Yes |
| • MIFARE: MFIS50/S70, 13.56MHz |
N/A |
Made to order |
| • HID: HID 1325, 26-bit, 125kHz |
N/A |
Made to order |
| COMMUNICATIONS |
| • Method |
TCP/IP, RS232, RS485, USB flash disk |
| • Baud rates |
9600, 19200, 38400, 57600, 115200 |
| OPERATING ENVIRONMENT |
| • Temperature (°C) |
0 ~ 45 |
| • Humidity (%) |
20 ~ 80 |
| • Power input |
DC5V 2A |
| TIME ATTENDANCE |
| • Siren |
External |
| • Work codes |
Yes |
| MULTIMEDIA |
| • Greeting voice |
Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) |
English (Standard) / Other languages are available upon request. |
| SOFTWARE LANGUAGE |
English, Arabic, Malay, Indonesian, Chinese (Traditional), Chinese (Simplified), Thai, Spanish, Portuguese (Brazil), Polish, Vietnamese, French, Russian, Persian, German, Italian, Turkish |
|
| |
 |
Packaging
Dimension (mm): 300(L) x 90(W) x 225(H)
Weight: 1.6kg |
| |
        |
|
|
|
|
