| Petite but Packs a Punch H3i may be small and slim, but it still has enough processing power to ensure quick verification times of less than one second and enough memory to store a whopping 30,000 transactions! |
| Completely Stand-alone Device H3i can be used as a stand-alone device for simple access management, making it perfect as a cost-effective and absolutely no-hassle solution for your small business office or home. |
| Adaptability for Added
Security H3i is compatible with all 12VDC/ relay output electromagnetic locks and can also be connected to an NO alarm to provide added security to your space |
| Clear-cut Notification of
Events A buzzer and LEDs are built-in in H3i to provide clear audio and visual notifications during any events that may occur at the device. |
| Easy Installation H3i takes minimal effort to install because of the device’s simplicity, and coupled with its compact size, can be easily placed in any location of your choice. |
| Simple Management &
Enrollment The H3i’s simple outlook is complimented with a simple management system. Just key in your administrator password to start enrolling or deleting data. |
| Combine Your Verification
Methods To further secure your space, H3i can accept six different combinations of fingerprint, card (either RFID or MiFARE) or password verification methods according to your preference. |
| Value for Money Mix and match your FingerTec system with the Kadex family to give you more value for your money. The versatile family of readers will ensure the most cost-effective solution for your situation. |

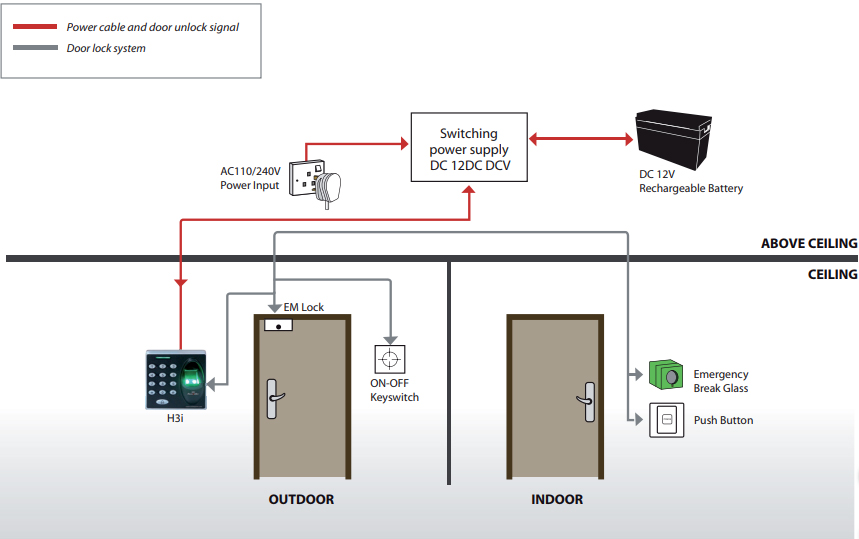

| Layout Plan |

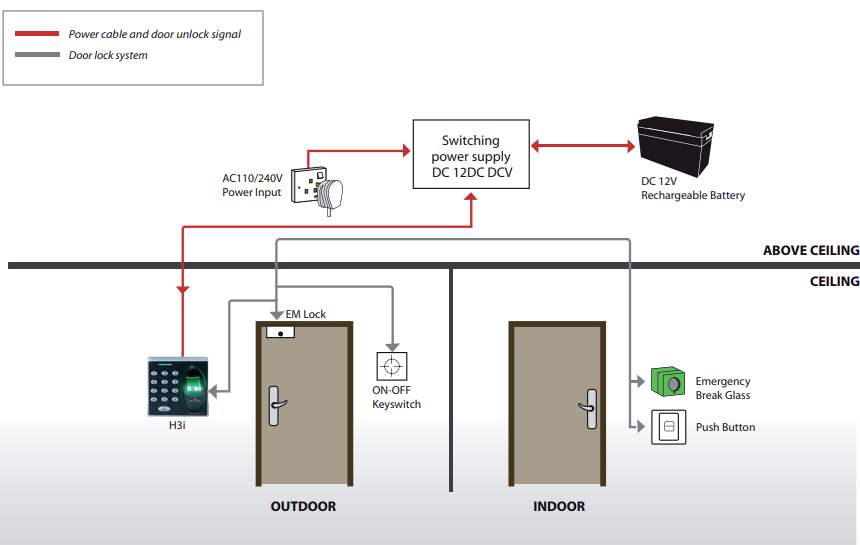

| Installation Diagram |
| SPECIFICATIONS | |
| MODEL | H3i |
| SURFACE FINISHING | Acrylonitrile Butadiene Styrene (ABS) |
| TYPE OF SCANNER | Optical fingerprint scanner |
| MICROPROCESSOR | 400 MHz |
| MEMORY | 32MB flash memory |
| ALGORITHM | BioBridge VX 10.0 |
| PRODUCT DIMENSION (L X W X H), mm | 88 x 25 x 88 |
| STORAGE | |
| • Fingerprint templates | 200 |
| • Cards | 500 |
| • Passwords | 8 sets (max length 4-digit per password) |
| ENROLLMENT & VERIFICATION | |
| • Methods | Fingerprint (1:1, 1:N), card or password |
| • Recommended Fingerprint per user ID | 1 |
| • Fingerprint placement | Any angle |
| • Password length (digit) | Max 4 |
| • Verification time (sec) | < 1 |
| • FAR (%) | < 0.0001 |
| • FRR (%) | < 1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Make to order |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | DC 12V 3A |
| ACCESS CONTROL | |
| • EM lock driving output | DC 12V / relay output |
| • Alarm output | NO |
| • Door sensor | Yes (NO/NC) |
| GROUP VERIFY TYPE | |
| • Password only | Yes |
| • Card only | Yes |
| • Fingerprint only | Yes |
| • Fingerprint or card or password | Yes |
| • Card and password | Yes |
| • Fingerprint and password | Yes |
| NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information. |
 |
| Packaging Dimension (mm): 173 (L) x 60 (W) x 135 (H) Weight: 0.34kg |
 |
 |
 |
 |
 |
