| Fast and Accurate Fingerprint
Algorithm One-touch-One-second recognition. Stores an impressive 1500 fingerprint templates, 10000 cards and 100000 transactions |
| USB Numeric Keypad for
Command Input Plug the keypad to H2b to enroll and delete users, or reset the terminal to its default settings |
| Easy Data Management All you need is a USB flash disk to transfer transaction logs from H2b to your computer |
| Normally Open Type Be vigilant and install external alarm with H2b, preparation for emergencies like break-ins, fire emergencies and etc. |
| Complete Access Control
Features H2b has complete access control features interface for 3rd party device integration such as electric magnetic lock, door sensor, exit button, alarm and doorbell |
| Fuss-Free Installation and
Connectivity H2b comes with Wiegand interface input & output and Network interface of TCP/IP or RS485 |
| Bluetooth Communication Use Bluetooth to communicate easily with mobile app like i-Neighbour App and TimeTec Security App, for user information registration and setting up of devices |
| Simple Enrolment Flash an admin card in front of FingerTec H2b and enroll away. User deletion is done the same way |

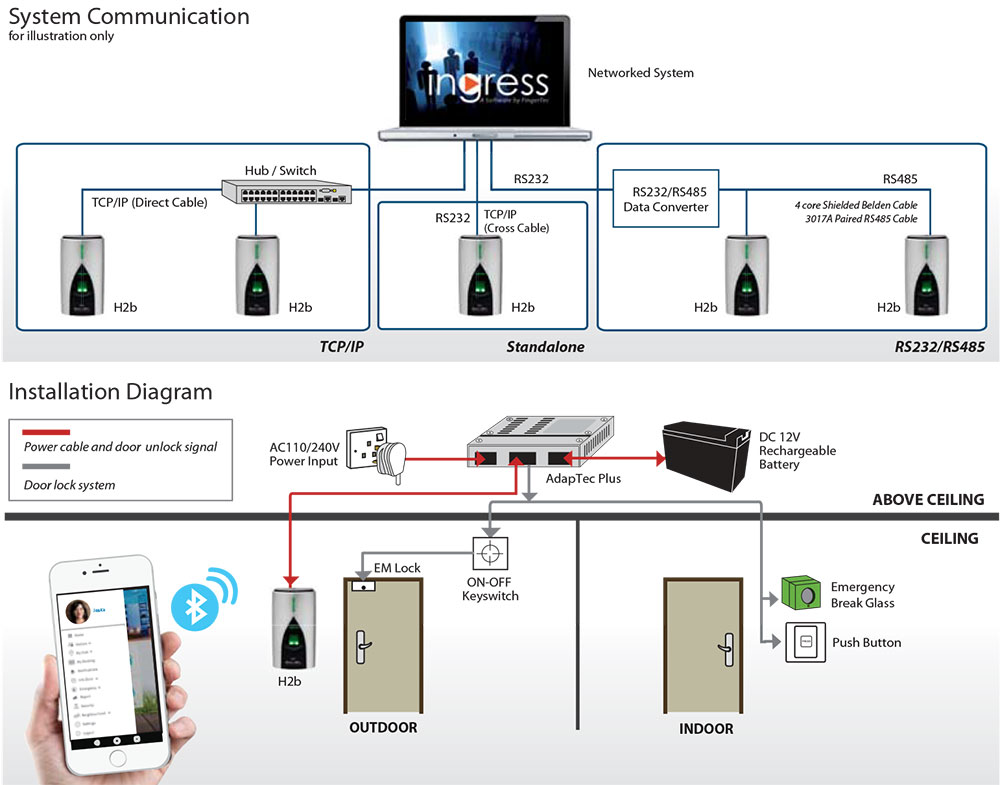

| LAYOUT PLAN |
| SPECIFICATIONS | |
| MODEL | H2b |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER | Non coated optical scanner |
| MICROPROCESSOR | 300 MHz |
| MEMORY | 256 MB flash memory & 32 MB SDRAM |
| ALGORITHM | BioBridge VX 9.0 / VX 10.0 |
| PRODUCT DIMENSION (L X W X H), mm | 78 x 50 x 150 |
| STORAGE | |
| • Fingerprint templates | 1500 |
| • Cards | 10000 |
| • Transactions | 100000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Fingerprint & card |
| • Recommended fingerprint per user ID | 2 |
| • Fingerprint placement | Any angle |
| • Verification time (sec) | < 1 |
| • FAR (%) | < 0.0001 |
| • FRR (%) | < 1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Made to order |
| • HID: HID 1326, 26-bit, 125kHz | Made to order |
| COMMUNICATIONS | |
| • Method | TCP/IP, RS485, USB disk |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| • Wiegand | 26-bit input / output |
| • Bluetooth | 4.2 |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | DC 12V 3A |
| MULTIMEDIA | |
| • Voice | Yes |
| ACCESS CONTROL | |
| • EM lock driving output | DC 12V 3A / relay output |
| • Alarm output | NO |
| • Anti passback | Yes |
| APP (ANDROID & IOS) | TimeTec Security, i-Neighbour |
| VOICE LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified,
Vietnamese, Spanish, Portuguese (Portugal), French, Persian. Other languages are available upon request |
| NOTE: Specifications are subject to change. Check https://product.fingertec.com for latest product information |
 |
 |
 |
 |
 |
 |
