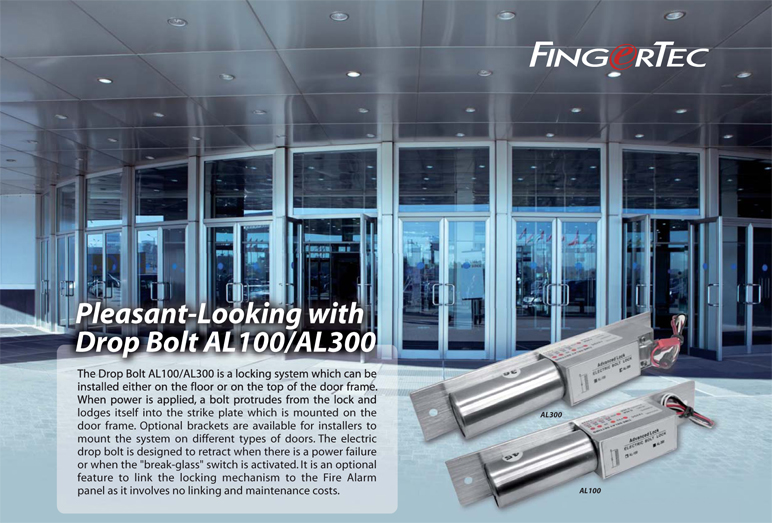

Brochure

BENEFITS
• Aesthetically pleasant-looking, as the lock is mounted flush into or onto the frame with nothing protruding
   outwards. This is a preferred system to be mounted on glass doors and glass doorframes.

• The electric drop bolt will not retract unless the "open button", access control release, or the "break-glass" switch is
   activated, hence it is a very secured locking system.

• The doors can open in both inward and outward directions.

SPECIFICATIONS
 MODEL AL100 AL300
 POWER INPUT DC12V
 OPERATING CURRENT 900mA
 HOLDING CURRENT 360mA
 DELAY TIME 0/3/9 seconds
 DOOR SWING ANGLE 180°

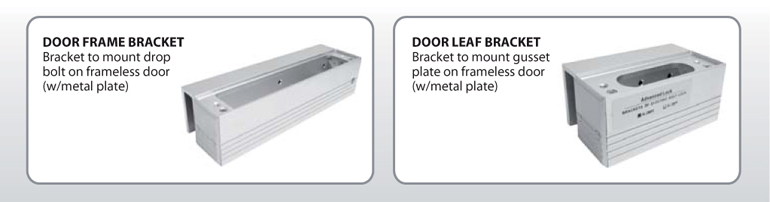

OPTIONAL ACCESSORIES

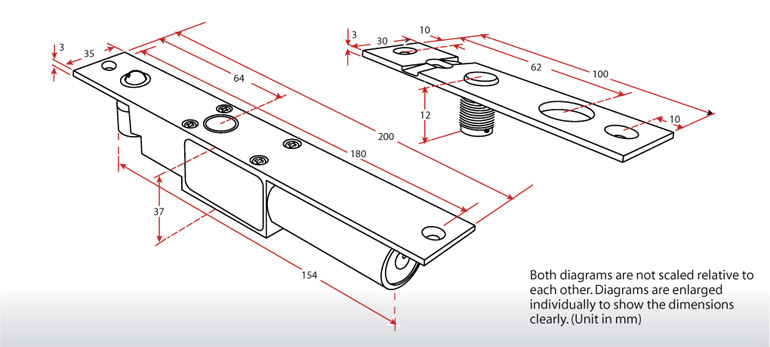

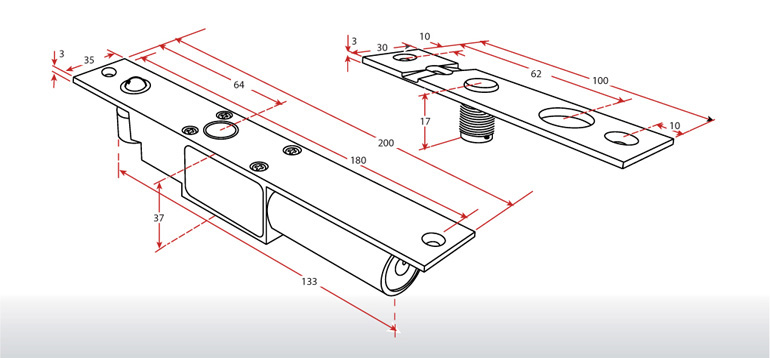

DIMENSION SPECIFICATION

AL100

AL300
INSTALLATION DIAGRAM
