Before you turn on your security system, you have to turn your power up and FingerTec recommends the CE-certified PW12V Switch Mode Power Supply, the most essential and reliable item to power up your security system. This power supply helps to secure your premises and ensure your access control system is always on safe and/or power on mode.

PW12V’s switching power supply has a universal power input range (from AC110 to 240) to ensure suitability for all power sources around the world. Switching between AC current to a more stable DC power is also hassle-free. To achieve zero down time and power failure, PW12V comes with a second power output port that charges your 12VDC rechargeable backup battery while the battery powers up the access control system during an emergency.

With its lightweight, compact size and extra short circuit & overload protection feature, PW12V is perfectly ideal to power up FingerTec H3i, s-Kadex and Ingressus controllers.
BENEFITS

• Universal power input for global compatibility
• Integration protection to prolong life span
• Sufficient power output to charge 12VDC rechargeable backup battery
• Highly efficient power conversion and low operation temperature
• 100% full load burn-in test to prove its reliability
• Lightweight, compact size for easy installations
• Maintain switching frequency at 45kHz
• CE-certified to ensure quality and safety of use

LAYOUT PLAN
Circuit Diagram:The circuit design of PW12V

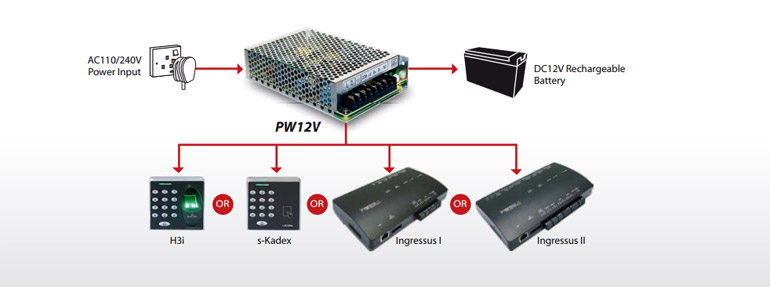

PW12V with Power Source and Load
SPECIFICATIONS
 OUTPUT OUTPUT NUMBER OUTPUT TO FINGERTEC DEVICES OUTPUT TO RECHARGEABLE BATTERY
DC VOLTAGE 13.8V 13.4V
RATED CURRENT 3.5A 0.23A
CURRENT RANGE 0 ~ 4A N/A
RIPPLE & NOISE (max.) Note.2 100mVp-p N/A
VOLTAGE ADJ. RANGE CH1: 12 ~ 14.5V
VOLTAGE TOLERANCE Note.3 +/- 1.0% N/A
LINE REGULATION +/- 0.5% N/A
LOAD REGULATION +/- 0.5% N/A
SETUP, RISE TIME 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 80ms/230VAC 16ms/115VAC at full load
 INPUT VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 71%
AC CURRENT (Typ.) 1.6A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.) COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
 PROTECTION OVERLOAD 105 ~ 150% rated output power
  Protection type : AC Charging Mode : Hiccup mode, recovers automatically after faulty condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE CH1:15.87 ~ 18.63V
Protection type : Hiccup mode, recovers automatically after faulty condition is removed
LOW BATTERY 9.5 ~ 11V
 FUNCTION DC ALARM SIGNAL (OPTIONAL) AC fail CN1 PIN2
Battery low under charge voltage 82.5% 2% CN1 PIN1
Normal 0.8V max. Abnormal 5V 0.5V
 ENVIRONMENT WORKING TEMP -10 ~ +60C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85C , 10 ~ 95% RH
TEMP. COEFFICIENT +/- 0.03%/C (0~50 ) on CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS UL60950-1, TUV EN60950-1 approved
 SAFETY & EMC  (Note 4) WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C / 70% RH
EMC EMISSION Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
 OTHERS EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
MTBF 304.3K hrs min. MIL-HDBK-217F (25C )
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.5Kg; 24pcs/12.6Kg/0.75CUFT

NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel
    capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be
    re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests,
    please refer to .EMI testing of component power supplies..
