Introducing the biometrics time and attendance system of the future, FingerTec AC100 series; the system that incorporates fingerprint verification technology to produce precise clocking times of each employee.

The FingerTec AC100 series system's reader is built with user-friendly features; it guarantees users a hassle-free and fast process in every use. The FingerTec AC100 series system allows storage of up to 200,000* transactions at a time and is capable of storing a maximum of 12,000* templates, which makes it suitable for offices, retail outlets and factories.

The FingerTec AC100 series system is bundled with time and attendance management software for easy administration of attendance and human resources management.

With the functions and capabilities it offers, the FingerTec AC100 series system is an excellent tool for better staff management. The FingerTec AC100 series also puts a stop to 'buddy punching' and gives you real value for your money.


FEATURES & BENEFITS
USB DATA MANAGEMENT
The AC100* has a USB port at the terminal itself to make downloading and uploading of data between a PC and the terminal simple and quick.

LARGE IN CAPACITY
Don’t underestimate the power of the AC100 series for it can now store up to 12,000* fingerprint templates and up to 200,000* transaction logs!

VALUE FOR MONEY
This model of time attendance was designed to be economical in nature, so that you are able to implement FingerTec Solutions at a lower cost. We believe that when it comes to security, there should be no compromise!

PRACTICALITY
The AC100 series contains just the amount of features that you need Eg: 1:1/1:N verification, password, work codes etc, ensuring that you don’t pay for any unnecessary aspects that you won’t be using.

USER FRIENDLY
This biometric model* also has icons that function especially for configuration which gives the whole device a more user-friendly.
* This symbol indicates that the features mentioned apply to the AC100C model only

ELIMINATE “BUDDY” PUNCHING
The weakness with the clock-in card system is that ‘buddy punching’ can occur where one employee can clock in the time for another employee if any of them are late. Eliminate this occurrence by using the unique-per-individual fingerprint as a clock in card!

Layout Plan

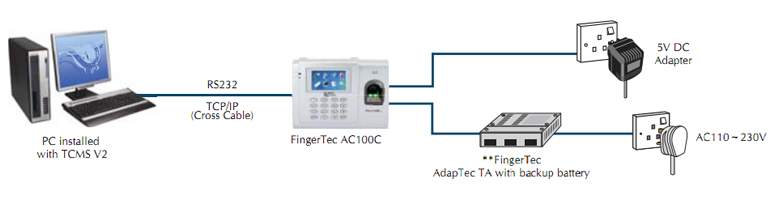

Layout Plan (Standalone)
for illustration only, ** optional

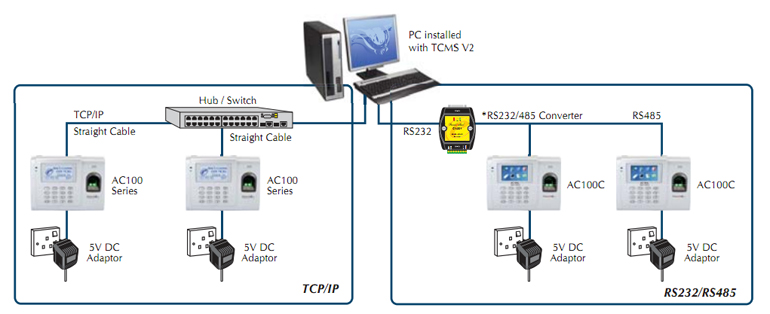

TCP/IP or RS485 Environment
for illustration only, * item not included in the package

Specifications
MODEL AC100 AC100C
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER Optical
PROCESSOR 400 MHz microprocessor
MEMORY 4MB flash memory 256MB flash memory
ALGORITHM BioBridge VX 9.0 BioBridge VX 9.0 or BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 195 x 48 x 144
STORAGE
• Fingerprint templates 1500 10000
• Transaction 100000 200000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), Password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) <1
• FAR (%) < 0.0001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, RS232, RS485 TCP/IP, RS232, RS485, USB flash disk
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC5V 2A
TIME ATTENDANCE
• Work codes Yes
• Fast Transaction Checking Yes
MULTIMEDIA
• Photo Display N/A 3.0” 65k color TFT screen
• Short message display Yes
• Voice Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard) / (Upon Request - Arabic / Indonesian / Spanish / Turkish / Thai / Polish / Korea / Romanian / Portuguese / Dutch / Chinese / French / Slovenia/ Russian/ Greek / Hebrew / Persian / Italian / Vietnamese / Czech / Bulgarian)
SOFTWARE LANGUAGE English, Arabic, Indonesian, Spanish, Chinese, Thai, Vietnamese, French, Persian, Italian, Russian, Malay, Portuguese, German, Turkish
*N/A: Not applicable

Packaging
Dimension (mm): 240(L) x 90(W) x 225(H)
Weight: 1.2kg
